材质 |
| |
塑件： |
PA66 UL
94V-0 |
|
|
端子： |
黄铜，0.8厚
镀锡 |
| |
螺丝： |
钢，M3
镀镍 |
|
|
|
|
|
|
性能 |
| |
额定电压/电流： |
300V
/ 15A |
|
|
使用温度： |
-4O°C~+105°C |
| |
耐电压： |
AC2000V
/ Min |
|
|
绝缘阻抗： |
500MΩ /
DC500V |
| |
适用线径： |
22-14AWG |
| |
最大锁紧扭力： |
0.5N.m
4.4Lb.in |
|
|

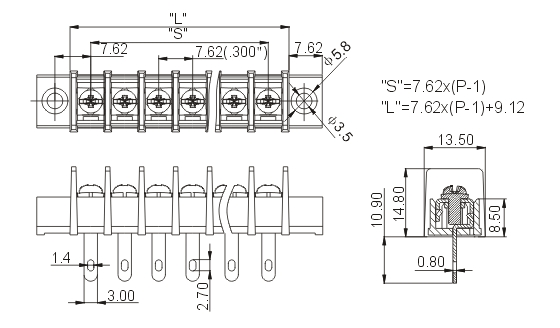

极 数
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
|
L(mm)
|
16.74
|
24.36
|
31.98
|
39.60
|
47.22
|
54.84
|
62.46
|
70.08
|
77.70
|
|
S(mm)
|
7.62
|
15.24
|
22.86
|
30.48
|
38.10
|
45.72
|
53.34
|
60.96
|
68.58
|
| |
|
极 数
|
11
|
12
|
13
|
14
|
15
|
16
|
17
|
18
|
19
|
|
L(mm)
|
85.32
|
92.94
|
100.56
|
108.18
|
115.80
|
123.42
|
131.04
|
138.66
|
146.28
|
|
S(mm)
|
76.20
|
83.82
|
91.44
|
99.06
|
106.68
|
114.30
|
121.92
|
129.54
|
137.16
|
| |
|
极 数
|
20
|
21
|
22
|
23
|
24
|
25
|
26
|
27
|
28
|
|
L(mm)
|
153.90
|
161.52
|
169.14
|
176.76
|
184.38
|
192.00
|
199.62
|
|
|
|
S(mm)
|
144.78
|
152.40
|
160.02
|
167.64
|
175.26
|
182.88
|
190.50
|
|
|
|
| |
|
|
