材质 |
| |
塑件： PA66+23%GF,
UL 94V-0 |
| |
端子： |
黄铜，0.8厚
镀锡 |
| |
螺丝： |
钢，M3
镀镍 |
|
|
|
|
| |
性能 |
| |
额定电压/电流： |
300V
/ 15A |
| |
使用温度： |
-4O°C~+105°C |
| |
耐电压： |
AC2000V
/ Min |
| |
绝缘阻抗： |
500MΩ /
DC500V |
| |
适用线径： |
22-14AWG |
| |
最大锁紧扭力： |
0.5N.m
4.4Lb.in |
|
|

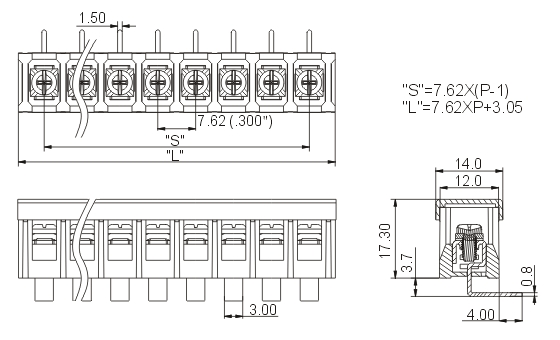

极 数
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
|
L(mm)
|
18.29
|
25.91
|
33.53
|
41.15
|
48.77
|
56.39
|
64.01
|
71.63
|
79.25
|
|
S(mm)
|
7.62
|
15.24
|
22.86
|
30.48
|
38.10
|
45.72
|
53.34
|
60.96
|
68.58
|
| |
|
极 数
|
11
|
12
|
13
|
14
|
15
|
16
|
17
|
18
|
19
|
|
L(mm)
|
86.87
|
94.49
|
102.11
|
109.73
|
117.35
|
124.97
|
132.59
|
140.21
|
147.83
|
|
S(mm)
|
76.20
|
83.82
|
91.44
|
99.06
|
106.68
|
114.30
|
121.92
|
129.54
|
137.16
|
| |
|
极 数
|
20
|
21
|
22
|
23
|
24
|
25
|
26
|
27
|
28
|
|
L(mm)
|
155.45
|
163.07
|
170.69
|
178.31
|
185.93
|
193.55
|
201.17
|
|
|
|
S(mm)
|
144.78
|
152.40
|
160.02
|
167.64
|
175.26
|
182.88
|
190.50
|
|
|
|
| |
|
|
