材质 |
| |
塑件： PA66+23%GF,
UL 94V-0 |
| |
端子： |
黄铜，0.8厚
镀锡 |
| |
螺丝： |
钢，M3
镀镍 |
|
|
|
|
| |
性能 |
| |
额定电压/电流： |
300V
/ 15A |
| |
使用温度： |
-4O°C~+105°C |
| |
耐电压： |
AC2000V
/ Min |
| |
绝缘阻抗： |
500MΩ /
DC500V |
| |
适用线径： |
22-14AWG |
| |
最大锁紧扭力： |
0.5N.m
4.4Lb.in |
|
|
极 数
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
|

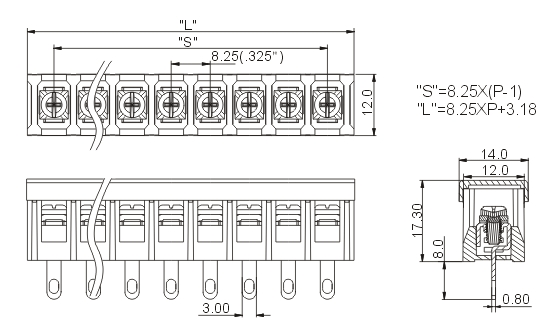

L(mm)
|
19.68
|
27.93
|
36.18
|
44.43
|
52.68
|
60.93
|
69.18
|
77.43
|
85.68
|
|
S(mm)
|
8.25
|
16.50
|
24.75
|
33.00
|
41.25
|
49.50
|
57.75
|
66.00
|
74.25
|
| |
|
极 数
|
11
|
12
|
13
|
14
|
15
|
16
|
17
|
18
|
19
|
|
L(mm)
|
93.93
|
102.18
|
110.43
|
118.68
|
126.93
|
135.18
|
143.43
|
151.68
|
159.93
|
|
S(mm)
|
82.50
|
90.75
|
99.00
|
107.25
|
115.50
|
123.75
|
132.00
|
140.25
|
148.50
|
| |
|
极 数
|
20
|
21
|
22
|
23
|
24
|
25
|
26
|
27
|
28
|
|
L(mm)
|
168.18
|
176.43
|
184.68
|
192.93
|
201.18
|
209.43
|
217.68
|
|
|
|
S(mm)
|
156.75
|
165.00
|
173.25
|
181.50
|
189.75
|
198.00
|
206.25
|
|
|
| |
|
|
