材质 |
|
塑件: PA66+23%GF,
UL 94V-0 |
|
端子: |
黄铜,1.0厚
镀锡 |
|
螺丝: |
钢,M4
镀镍 |
|
|
|
|
性能 |
|
额定电压/电流: |
600V
/ 40A |
|
使用温度: |
-4O°C~+105°C |
|
耐电压: |
AC2000V
/ 1 Min |
|
绝缘阻抗: |
500MΩ /
DC500V |
|
适用线径: |
18-10AWG |
|
最大锁紧扭力: |
1.2N.m
10.6Lb.in |
|
极 数
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|

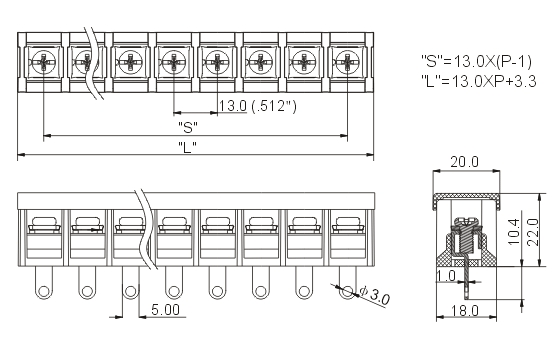

L(mm)
|
29.30
|
42.30
|
55.30
|
68.30
|
81.30
|
94.30
|
107.30
|
120.30
|
133.30
|
S(mm)
|
13.00
|
26.00
|
39.00
|
52.00
|
65.00
|
78.00
|
91.00
|
104.00
|
117.00
|
|
极 数
|
11
|
12
|
13
|
14
|
15
|
16
|
17
|
18
|
19
|
L(mm)
|
146.30
|
159.30
|
172.30
|
185.30
|
198.30
|
211.30
|
224.30
|
237.30
|
250.30
|
S(mm)
|
130.00
|
143.00
|
156.00
|
169.00
|
182.00
|
195.00
|
208.00
|
221.00
|
234.00
|
|
极 数
|
20
|
21
|
22
|
23
|
24
|
25
|
26
|
27
|
28
|
L(mm)
|
263.30
|
276.30
|
289.30
|
302.30
|
315.30
|
328.30
|
341.30
|
|
|
S(mm)
|
247.00
|
260.00
|
273.00
|
286.00
|
299.00
|
312.00
|
325.00
|
|
|
|
|
|
