材质 |
| |
塑件： PA66+23%GF,
UL 94V-0 |
| |
端子： |
黄铜，0.8厚
镀锡 |
| |
螺丝： |
钢，M3
镀镍 |
|
|
|
|
| |
性能 |
| |
额定电压/电流： |
300V
/ 15A |
| |
使用温度： |
-4O°C~+105°C |
| |
耐电压： |
AC2000V
/ 1 Min |
| |
绝缘阻抗： |
500MΩ /
DC500V |
| |
适用线径： |
22-14AWG |
| |
最大锁紧扭力： |
0.5N.m
4.4Lb.in |
|
|

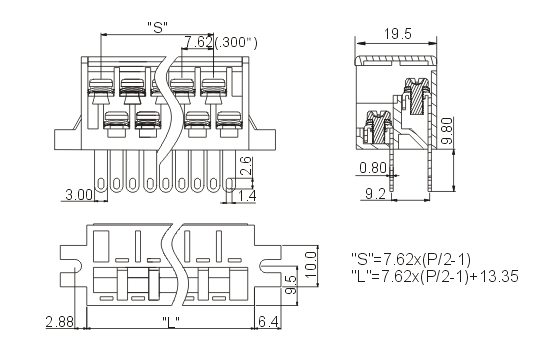

极 数
|
4
|
6
|
8
|
10
|
12
|
14
|
16
|
18
|
20
|
|
L(mm)
|
20.97
|
28.59
|
36.21
|
43.83
|
51.45
|
59.07
|
66.69
|
74.31
|
81.93
|
|
S(mm)
|
7.62
|
15.24
|
22.86
|
30.48
|
38.10
|
45.72
|
53.34
|
60.69
|
68.58
|
| |
|
极 数
|
22
|
24
|
26
|
28
|
30
|
32
|
34
|
36
|
38
|
|
L(mm)
|
89.55
|
97.17
|
104.79
|
112.41
|
120.03
|
127.65
|
135.27
|
142.89
|
150.51
|
|
S(mm)
|
76.20
|
83.82
|
91.44
|
99.06
|
106.38
|
114.30
|
121.92
|
129.54
|
137.16
|
| |
|
极 数
|
40
|
42
|
44
|
46
|
48
|
|
|
|
|
|
L(mm)
|
158.13
|
165.75
|
173.37
|
180.99
|
188.61
|
|
|
|
|
|
S(mm)
|
144.78
|
152.40
|
160.02
|
167.64
|
175.26
|
|
|
|
|
|
| |
|
|
