材质 |
| |
塑件： PA66+23%GF,
UL 94V-0 |
| |
端子： |
黄铜，0.8厚
镀金 |
| |
螺丝： |
钢，M3.5
镀金 |
|
|
|
|
| |
性能 |
| |
额定电压/电流： |
300V
/ 15A |
| |
使用温度： |
-4O°C~+105°C |
| |
耐电压： |
AC2000V
/ 1 Min |
| |
绝缘阻抗： |
500MΩ /
DC500V |
| |
适用线径： |
22-14AWG |
| |
最大锁紧扭力： |
0.8N.m
7.0Lb.in |
|
|

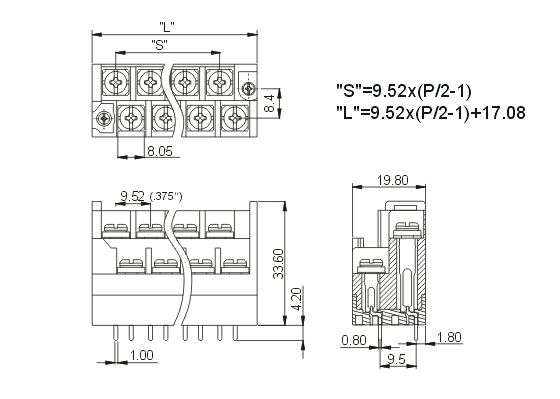

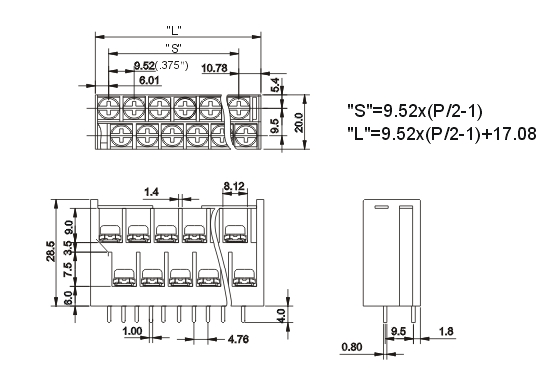

极 数
|
4
|
6
|
8
|
10
|
12
|
14
|
16
|
18
|
20
|
|
L(mm)
|
26.60
|
36.12
|
45.64
|
55.16
|
64.68
|
74.20
|
83.72
|
93.24
|
102.76
|
|
S(mm)
|
9.52
|
19.04
|
28.56
|
38.08
|
47.60
|
57.12
|
66.64
|
76.16
|
85.68
|
| |
|
极 数
|
22
|
24
|
26
|
28
|
30
|
32
|
34
|
36
|
38
|
|
L(mm)
|
112.28
|
121.80
|
131.32
|
140.84
|
150.36
|
159.88
|
169.40
|
178.92
|
188.44
|
|
S(mm)
|
95.20
|
104.72
|
114.24
|
123.76
|
133.28
|
142.80
|
152.32
|
161.84
|
171.36
|
| |
|
极 数
|
40
|
42
|
44
|
46
|
48
|
|
|
|
|
|
L(mm)
|
197.96
|
207.48
|
217.00
|
226.52
|
236.04
|
|
|
|
|
|
S(mm)
|
180.88
|
190.40
|
199.92
|
209.44
|
218.96
|
|
|
|
|
|
| |
|
|
