材质 |
| |
塑件： |
PC UL
94V-2 |
|
|
端子： |
黄铜，0.8厚
镀锡 |
| |
螺丝： |
钢，M3.5
镀镍 |
|
|
|
|
|
|
性能 |
| |
额定电压/电流： |
300V
/ 25A |
|
|
使用温度： |
-4O°C~+80°C |
| |
耐电压： |
AC2000V
/ Min |
|
|
绝缘阻抗： |
1000MΩ /
DC500V |
| |
适用线径： |
22-12AWG |
| |
最大锁紧扭力： |
0.8N.m
7.0Lb.in |
|
|

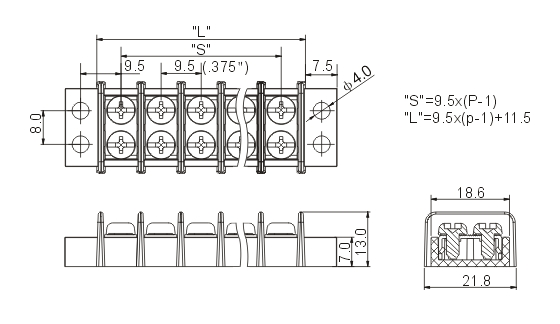

极 数
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
|
L(mm)
|
21.0
|
30.5
|
40.0
|
49.5
|
59.0
|
68.5
|
78.0
|
87.5
|
97.0
|
|
S(mm)
|
9.5
|
19.0
|
28.5
|
38.0
|
47.5
|
57.0
|
66.5
|
76.0
|
85.5
|
| |
|
极 数
|
11
|
12
|
13
|
14
|
15
|
16
|
17
|
18
|
19
|
|
L(mm)
|
106.5
|
116.0
|
125.5
|
135.0
|
144.5
|
154.0
|
163.5
|
173.0
|
182.5
|
|
S(mm)
|
95.0
|
104.5
|
114.0
|
123.5
|
133.0
|
142.5
|
152.0
|
161.5
|
171.0
|
| |
|
极 数
|
20
|
21
|
22
|
23
|
24
|
25
|
26
|
27
|
28
|
|
L(mm)
|
192.0
|
201.5
|
211.0
|
220.5
|
230.0
|
|
|
|
|
|
S(mm)
|
180.5
|
190.0
|
199.5
|
209.0
|
218.5
|
|
|
|
|
|
| |
|
|
