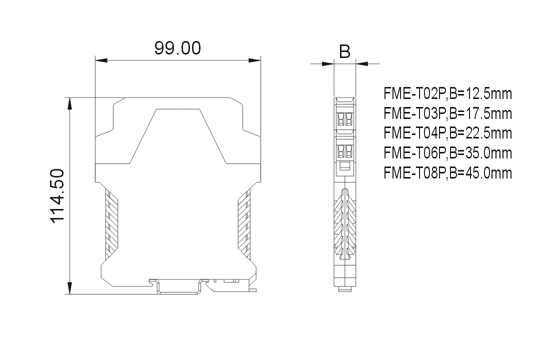

型号：FME-T02P/FME-T03P/FME-T04P/FME-T06P/FME-T08P |
|
性能 |
|
|
额定电压/额定电流 |
300V/15A |
|
线径 |
28-12
AWG
2.5
mm2 |
|
耐电压 |
AC2000V/1Min |
|
绝缘电阻 |
5000MΩ/DC1000V |
|
接触电阻 |
20mΩ |
|
温度范围 |
-40°C~+105°C |
|
扭矩 |
0.4Nm(3.6Lb.in) |
|
剥线长度 |
7-8mm |
|
材质 |
|
|
塑件 |
PA66,UL94V-0 |
|
螺丝 |
M2.5,钢,镀锌 |
|
触点材料 |
磷青铜 |
|
|
| |
|
|
