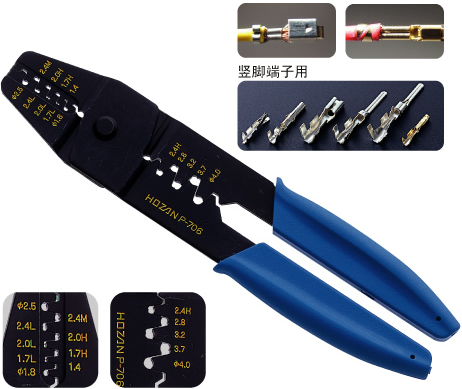

压接钳>>P-706 压接钳（竖脚端子用/简易型） |
|
|
|
|
|
|
 |
|
【说明】：
适合小型连接头加工。（压接口部为分段薄形。） |
|
|
| |
压接口 |
压接口宽
mm |
压接高度
mm |
AWG
名称 |
目标电线 |
| mm |
mm2 |
| 头部 |
1.4 |
1.4 |
0.71.1 |
#28~#24 |
0.32~0.51 |
0.08~0.2 |
| 1.7L |
1.7 |
#28~#22 |
0.32~0.64 |
0.08~0.32 |
| 1.7M |
#24~#18 |
0.51~1.02 |
0.2~0.82 |
| 2.0L |
2.0 |
0.9 |
#28~#18 |
0.32~1.02 |
0.08~0.82 |
| 2.0M |
1.3 |
#24~#18 |
0.51~1.02 |
0.2~0.82 |
| 2.4L |
2.4 |
1.2 |
#20~#16 |
0.81~1.29 |
0.52~1.31 |
| 2.4M |
1.5 |
#16•#14 |
1.29•1.63 |
1.31•2.08 |
| 1.8¢ |
1.8 |
1.4 |
绝缘用圆形压接 |
| 2.5¢ |
2.5 |
2.1 |
| 柄部 |
2.4H |
2.4 |
2.4 |
绝缘用 |
| 2.8 |
2.8 |
2.8 |
| 3.2 |
3.2 |
3.2 |
| 3.7 |
3.7 |
3.7 |
| 4.0¢ |
4.0 |
3.5 |
绝缘用圆形压接 |
|
|
|
|
 |
|
 |
|
 |
|
|
| |
|
