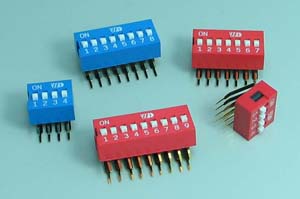

DIP开关DA系列 |
|
 |
|
技术参数
| Mechanical life |
2000 operations per switch |
| Operation Force |
≤9.8N max. |
| Stroke |
2.0mm |
| Operation Temp |
-20℃ to 70℃ |
| Electrical life |
2000 operations per switch-24 VDC，25mA |
| Contact Resistance |
50m max. at initial |
| Non-Switching Rating |
100mA，50VDC |
| Switching Rating |
25mA，24VDC |
| Circuit |
Single pole single throw |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
