98
电工绝缘开口扳手 |
|
|
|
|
|
|
 |
| |
98 00 14 |
|
| |
|
 |
| |
IEC
60900 DIN EN 60900
ASTM F1505 |
|
|
 |
|
货号 |
扳手开口 |
最大 |
最大 |
最大 |
重量 |
| |

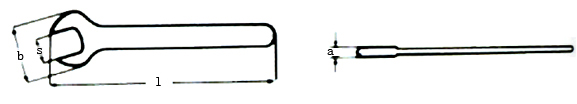

宽度S
mm |
长度l
mm |
头部宽度b
mm |
头部厚度a
mm |
g |
|
98 00 07 |
7 |
105 |
20.0 |
4.0 |
30 |
|
98 00 08 |
8 |
105 |
22.0 |
4.0 |
30 |
|
98 00 09 |
9 |
105 |
24.0 |
4.0 |
35 |
|
98 00 10 |
10 |
105 |
27.0 |
5.0 |
40 |
|
98 00 11 |
11 |
120 |
30.0 |
5.5 |
60 |
|
98 00 12 |
12 |
125 |
32.0 |
5.5 |
60 |
|
98 00 13 |
13 |
130 |
34.0 |
6.5 |
65 |
|
98 00 14 |
14 |
135 |
35.0 |
6.5 |
80 |
|
98 00 15 |
15 |
145 |
37.0 |
7.0 |
85 |
|
98 00 16 |
16 |
155 |
38.0 |
7.0 |
110 |
|
98 00 17 |
17 |
155 |
42.0 |
8.0 |
110 |
|
98 00 18 |
18 |
160 |
44.0 |
9.0 |
140 |
|
98 00 19 |
19 |
165 |
47.0 |
9.0 |
150 |
|
98 00 22 |
22 |
190 |
52.0 |
9.0 |
200 |
|
98 00 24 |
24 |
210 |
56.0 |
9.0 |
280 |
|
98 00 27 |
27 |
215 |
63.0 |
9.0 |
310 |
|
|
英制开口扳手 |
|
货号 |
扳手开口 |
最大 |
重量 |
| |
宽度
inch |
长度I
inch |
g |
|
98 00 1/4˝ |
1/4 |
4 1/4 |
30 |
|
98 00 5/16˝ |
5/16 |
4 1/4 |
35 |
|
98 00 3/8˝ |
3/8 |
4 1/4 |
40 |
|
98 00 7/16˝ |
7/16 |
4 3/4 |
60 |
|
98 00 1/2˝ |
1/2 |
5 1/2 |
60 |
|
98 00 9/16˝ |
9/16 |
6 |
85 |
|
98 00 5/8˝ |
5/8 |
6 1/2 |
110 |
|
98 00 3/4˝ |
3/4 |
7 |
115 |
|
开口呈15°角
