98

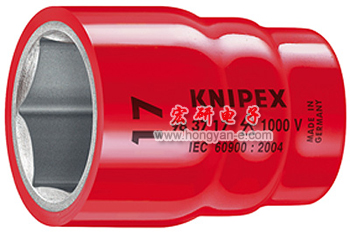

电工绝缘六角套筒 |
|
|
内驱动方3/8˝ 或1/2˝ |
|
DIN 7448 |
|
用于公制和英制六角螺钉 |
|
|
|
|
 |
| |
98 37 17 |
|
| |
|
 |
| |
IEC
60900 DIN EN 60900
ASTM F1505 |
|
|
|
|
货号 |
对边宽度S |
最大有效 |
驱动方 |
重量 |
| |
mm |
内径的直径d |
|
g |
|
98 37 10 |
10 |
18.7 |
 |
30 |
|
98 37 11 |
11 |
20.0 |
30 |
|
98 37 12 |
12 |
21.7 |
45 |
|
98 37 13 |
13 |
22.5 |
35 |
|
98 37 14 |
14 |
23.7 |
40 |
|
98 37 17 |
17 |
27.5 |
60 |
|
98 37 19 |
19 |
30.0 |
75 |
|
98 47 10 |
10 |
19.5 |
|
60 |
|
98 47 11 |
11 |
20.7 |
60 |
|
98 47 12 |
12 |
23.0 |
60 |
|
98 47 13 |
13 |
23.2 |
65 |
|
98 47 14 |
14 |
24.5 |
65 |
|
98 47 16 |
16 |
26.9 |
70 |
|
98 47 17 |
17 |
28.2 |
70 |
|
98 47 18 |
18 |
29.0 |
80 |
|
98 47 19 |
19 |
30.7 |
100 |
|
98 47 22 |
22 |
34.5 |
125 |
|
98 47 24 |
24 |
37.0 |
155 |
|
98 47 27 |
27 |
41.0 |
180 |
|
|
|
|
|
|
