MP35A(Blades sold separately)
| Model
No. |
Overall length
(mm) |
Weight
(g) |
Diameter
(mm) |
Air
pressure
(N) |
| MP35A |
268 |
830 |
56 |
4410 |

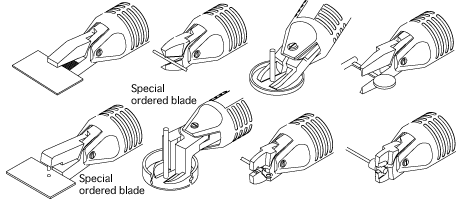

- These cutters have the widest range of
usage. Because they are powerful, they are able to perform
many types of work including cutting, crimping, punching and
caulking just by changing the blades.
|
|
Blade No. |
Material |
Cutting capacity
(Diameter=mm) |
S7P
S7PS |
Copper |
4.8 |
P8P
CR8P
EP10P |
Steel |
4.0 |
|
Z8P |
Piano wire |
1.2 |
F9P
F9PS
FD9P |
Plastics(Hard)
Plastics(Soft) |
13.0
6.5 |
|
 |
| Non insulated
connector |
 |
|
| Insulated
connector |
 |
|
| Wire connector
insulated |
 |
|
| Reel connector |
 |
|
|
| Blade
No. |
Crimping capacity |
|
A8P-1.25 |
Non insulated
connector1.25 |
|
A8P-2.0 |
Non insulated
connector2.0 |
|
A8P-5.5 |
Non insulated
connector5.5 |
|
AR8P-1.25 |
Insulated connector
1.25 |
|
AR8P-2.0 |
Insulated connector 2.0 |
|
AR8P-5.5 |
Insulated connector 5.5 |
|
AZ8P-1.25 |
Wire connector
insulated 1.25 |
|
AZ8P-2.0 |
Wire connector
insulated 2.0 |
|
Blade No. |
Crimping capacity |
|
A8WP-1.25/2.0 |
Non insulated connector
1.25/2.0 |
|
A8WP-2.0/5.5 |
Non insulated connector
2.0/5.5 |
|
AR8WP-1.25/2.0 |
Insulated connector
1.25/2.0 |
|
AR8WP-2.0/5.5 |
Insulated
connector 2.0/5.5 |
|
AC8WP-1.25 |
Reel connector 1.25 |
|
AC8WP-2.0 |
Reel connector 2.0 |
|
