Standard Blade Size Table
  • The shape used for MR30A is the basic shape of a standard blade.
    Although its applicable type is the MR type, a standard blade can also be used with the MP-type, MPL-type, MOS-type, etc., and also with the machine fitting types including MS, MSK, MSF, ML, MSR, CF, and CL.
    　
  • Sizes differ slightly for blades used for lead wire, iron wire and resin in the size table.

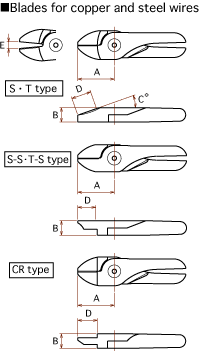

Body Blade
No.		 Size(mm)
A B C D E
MR3 S20 24 7 25 10 2.3
S20S 24 7 - 12 2.4
CR20 24 7 - 11 2.4
MR5 S2 24 7 25 10 3.5
S2S 24 7 - 12 3.9
CR2 24 7 - 11 3.5
MR7 T7 27 9 25 14.5 4
T7S 27 9 - 13 3.7
CR7 26.5 9 - 10 3.4
MR10 S4 27 9 25 13 5
S4S 27 9 - 13 5
CR4 26.5 9 - 10 4.1
MR10A S5A 35 12 30 22 5
S5AS 35 12 - 17 5.5
CR6A 35 12 - 15 6
MR12 S5J 35 12 30 19 5
S5JS 35 12 - 17 4.9
CR6J 35.5 12 - 16.5 4.7
MR20 S5 35 12 30 20 7
S5S 35 12 - 17 7
CR6 35 12 - 16 8.3
MR30A S7P 43 17 30 24 7.5
S7PS 43 17 - 20 7.5
CR8P 43 17 - 21 8.5
MR50A S120 45 25 35 26 9.5
S120S 55 25 - 30 9.6
CR120 55 25 - 31.5 10

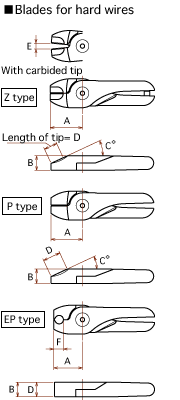

Body Blade
No.		 Size(mm)
A B C D E F
MR3 Z20 24 7 25 11 2.7 -
EP20 20 7 - 7 2.3 7.5
MR5 Z2 24 7 25 11 3.5 -
EP2 20 7 - 7 3.1 7
MR7 ZT7 27 9 30 11 3.5 -
EP7 26 9 - 9 3.2 7.5
MR10 Z4 27 9 25 10 5 -
EP4 26 9 - 9 5.2 7.5
MR10A Z6A 31 12 35 15 4.5 -
P6A 28 12 35 14 4.5 -
EP6A 28 12 - 12 4.5 11.5
MR12 Z6J 30 12 35 15 4.9 -
P6J 28 12 35 14 4 -
EP6J 28 12 - 12 4.1 12
MR20 Z6 30 12 35 15 6.5 -
P6 29 12 35 13 6.5 -
EP6 28 12 - 12 8.9 11.5
MR30A Z8P 38 17 40 20 6.5 -
P8P 37 17 25 12 7.5 -
EP10P 34 17 - 17 6 11.5
MR50A Z120 40 25 35 17 7.5 -
P120 40 25 35 18 8.5 -
EP120 40 25 - 25 8.5 15

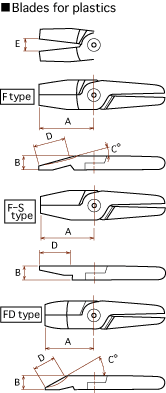

Body Blade
No.		 Size(mm)
A B C D E
MR3 F10 24 7 15 13 3
F10S 24 7 - 13 3.1
FD10 24 7 40 10 2.8
MR5 F1 24 7 15 13 3.5
F1S 24 7 - 13 3.3
FD1 24 7 40 10 3.5
MR7 FT7 27 9 25 14 2.7
FT7S 27 9 - 13 3.7
FD7 27 9 40 12 3.4
MR10 F3 27 9 25 14 5
F3S 27 9 - 13 5
FD3 27 9 40 12 5
MR10A F5A 35 12 30 22 5
F5AS 35 12 - 17 5.5
FD5A 35 12 40 15 5
MR12 F5J 35 12 30 19 5
F5JS 35 12 - 17 4.8
FD5J 35 12 40 14 5
MR20 F5 35 12 15 19 9
F5S 35 12 - 16 9
FD5 35 12 40 14 9
MR30A F9P 66 17 15 38 15.5
F9PS 65 17 - 37 16
FD9P 59 17 30 37 14.5
MR50F F9P 66 17 15 38 27.5
F9PS 65 17 - 37 27.5
FD9P 59 17 30 37 27.5
MR50A F120 53 25 30 35 12.5
