==IMPACT SOCKET（气动套筒）== |
|
日本TONE前田气动套筒型号：4A-08、4A-09、4A-10、4A-11、4A-12、4A-13、4A-14、4A-15、4A-16、4A-17、4A-18、4A-19、4A-20、4A-21、4A-22、4A-23、4A-24、4A-25、4A-26、4A-27、4A-28、4A-29、4A-30、4A-32、4A-33、4A-36 |
|
|
|
 |
|
|
|

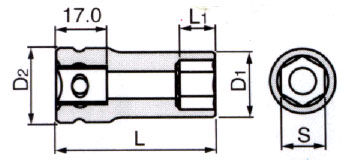

Impact Socket |
|
Item No. |
S(mm) |
D1(mm) |
D2(mm) |
L1(mm) |
L(mm) |
|
4A-08 |
8 |
14 |
25 |
6 |
38 |
|
4A-09 |
9 |
15 |
25 |
8 |
38 |
|
4A-10 |
10 |
16 |
25 |
9 |
38 |
|
4A-11 |
11 |
17.5 |
25 |
10 |
38 |
|
4A-12 |
12 |
19.5 |
25 |
11 |
38 |
|
4A-13 |
13 |
21 |
25 |
11 |
38 |
|
4A-14 |
14 |
22 |
25 |
12 |
38 |
|
4A-15 |
15 |
23 |
25 |
12 |
38 |
|
4A-16 |
16 |
24 |
25 |
12 |
38 |
|
4A-17 |
17 |
26 |
26 |
13 |
40 |
|
4A-18 |
18 |
27 |
27 |
13 |
40 |
|
4A-19 |
19 |
29 |
29 |
14 |
40 |
|
4A-20 |
20 |
30 |
28 |
15 |
40 |
|
4A-21 |
21 |
31 |
28 |
15 |
40 |
|
4A-22 |
22 |
32 |
27 |
15 |
40 |
|
4A-23 |
23 |
33 |
28 |
15 |
40 |
|
4A-24 |
24 |
35 |
28 |
16 |
42 |
|
4A-25 |
25 |
37 |
30 |
18 |
44 |
|
4A-26 |
26 |
38 |
30 |
18 |
44 |
|
4A-27 |
27 |
39 |
31 |
18 |
44 |
|
4A-28 |
28 |
40 |
32 |
18 |
45 |
|
4A-29 |
29 |
41 |
32 |
20 |
45 |
|
4A-30 |
30 |
42 |
32 |
20 |
46 |
|
4A-32 |
32 |
45 |
34 |
20 |
46 |
|
4A-33 |
33 |
46 |
34 |
22 |
48 |
|
4A-36 |
36 |
50 |
34 |
22 |
51 |
|
|
 |
|
