==IMPACT SOCKET（气动套筒）== |
|
日本TONE前田气动套筒型号：4A-10L100、4A-12L100、4A-13L100、4A-14L100、4A-17L100、4A-19L100、4A-21L100、4A-22L100、4A-24L100、4A-27L100、4A-30L100、4A-32L100、4A-36L100 |
|
|
|
 |
|
|
|
LONG
IMPACT
SOCKET |
|

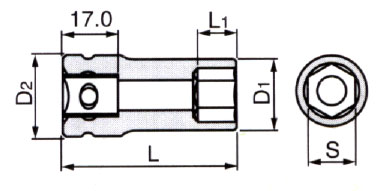

Item No. |
S(mm) |
D1(mm) |
D2(mm) |
L1(mm) |
L(mm) |
|
4A-10L100 |
10 |
16.0 |
25.0 |
10.0 |
100.0 |
|
4A-12L100 |
12 |
19.5 |
25.0 |
11.0 |
100.0 |
|
4A-13L100 |
13 |
21.0 |
25.0 |
11.0 |
100.0 |
|
4A-14L100 |
14 |
22.0 |
25.0 |
12.0 |
100.0 |
|
4A-17L100 |
17 |
26.0 |
26.0 |
13.0 |
100.0 |
|
4A-19L100 |
19 |
29.0 |
27.0 |
14.0 |
100.0 |
|
4A-21L100 |
21 |
31.0 |
28.0 |
15.0 |
100.0 |
|
4A-22L100 |
22 |
32.0 |
27.0 |
15.0 |
100.0 |
|
4A-24L100 |
24 |
35.0 |
28.0 |
16.0 |
100.0 |
|
4A-27L100 |
27 |
39.0 |
31.0 |
18.0 |
100.0 |
|
4A-30L100 |
23 |
42.0 |
32.0 |
20.0 |
100.0 |
|
4A-32L100 |
32 |
45.0 |
34.0 |
20.0 |
100.0 |
|
4A-36L100 |
36 |
50.0 |
34.0 |
22.0 |
100.0 |
|
|
 |
|
