==SOCKET WRENCH SET（套筒）== |
|
日本TONE前田套筒型号：TONE
6D-19L、6D-21L、6D-22L、6D-24L、6D-27L、6D-30L、6D-32L、6D-35L、6D-36L、6D-41L、6D-46L、6D-50L、6D-55L |
|
|
|
 |
|
|
|

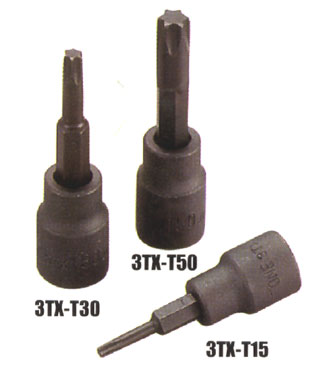

TORX Socket
(Heavy Duty) |
|
Item No. |
改锥尺寸 |

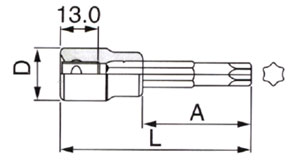

尺寸(mm) |
|
D |
A |
L |
|
3TX-T10 |
T10 |
17.0 |
28.0 |
55.0 |
|
3TX-T15 |
T15 |
17.0 |
28.0 |
55.0 |
|
3TX-T20 |
T20 |
17.0 |
28.0 |
55.0 |
|
3TX-T25 |
T25 |
17.0 |
28.0 |
55.0 |
|
3TX-T27 |
T27 |
17.0 |
28.0 |
55.0 |
|
3TX-T30 |
T30 |
19.0 |
38.0 |
67.0 |
|
3TX-T40 |
T40 |
19.0 |
38.0 |
67.0 |
|
3TX-T45 |
T45 |
19.0 |
38.0 |
67.0 |
|
3TX-T50 |
T50 |
19.0 |
38.0 |
67.0 |
|
3TX-T55 |
T55 |
19.0 |
32.0 |
67.0 |
|
|
 |
|
|
|
T型 |
改锥尺寸 |
T8 |
T10 |
T15 |
T20 |
T25 |
T27 |
T30 |
T40 |
T45 |
T50 |
T55 |
|
头部尺寸 |
2.37 |
2.80 |
3.33 |
3.92 |
4.49 |
5.05 |
5.58 |
6.71 |
7.88 |
8.89 |
11.28 |
|
|
|
|
E型 |
改锥尺寸 |
E4 |
E5 |
E6 |
E7 |
E8 |
E10 |
E11 |
E12 |
E14 |
E16 |
E18 |
E20 |
E24 |
|
头部尺寸 |
3.86 |
4.63 |
5.59 |
6.05 |
7.35 |
9.25 |
9.91 |
11.00 |
12.73 |
14.56 |
16.46 |
18.24 |
21.93 |
|
|
|
|
