==SOCKET WRENCH SET（套筒）== |
|
日本TONE前田套筒型号：TONE TX3030、TX3050 |
|
|
|
 |
|

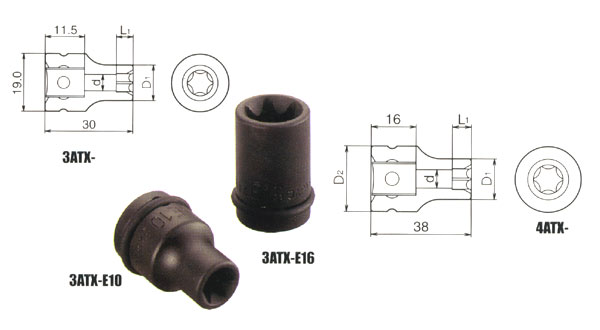

Hexlobe Socket Set for Impact Wrench |
|
|
|
|
|
Item No. |
改锥尺寸 |
尺寸(mm) |
|
D1 |
L1 |
d |
|
3ATX-E04 |
E4 |
8.0 |
3.5 |
2.4 |
|
3ATX-E05 |
E5 |
9.0 |
3.5 |
3.0 |
|
3ATX-E06 |
E6 |
10.0 |
4.0 |
3.6 |
|
3ATX-E07 |
E7 |
11.0 |
4.8 |
3.9 |
|
3ATX-E08 |
E8 |
12.0 |
5.6 |
4.3 |
|
3ATX-E10 |
E10 |
13.0 |
6.4 |
5.6 |
|
3ATX-E11 |
E11 |
14.0 |
7.2 |
6.4 |
|
3ATX-E12 |
E12 |
15.0 |
8.0 |
7.2 |
|
3ATX-E14 |
E14 |
17.0 |
8.8 |
8.0 |
|
3ATX-E16 |
E16 |
19.0 |
9.6 |
8.8 |
|
|
|
|
|
|
|
|
Item No. |
改锥尺寸 |
尺寸(mm) |
|
D1 |
D2 |
L1 |
d |
|
4ATX-E08 |
E8 |
13.0 |
25.0 |
5.6 |
4.3 |
|
4ATX-E10 |
E10 |
14.0 |
25.0 |
6.4 |
5.6 |
|
4ATX-E11 |
E11 |
15.0 |
25.0 |
7.2 |
6.4 |
|
4ATX-E12 |
E12 |
15.5 |
25.0 |
8.0 |
7.2 |
|
4ATX-E14 |
E14 |
18.5 |
25.0 |
8.8 |
8.0 |
|
4ATX-E16 |
E16 |
20.0 |
25.0 |
9.6 |
8.8 |
|
4ATX-E18 |
E18 |
22.0 |
25.0 |
11.1 |
10.3 |
|
4ATX-E20 |
E20 |
24.0 |
26.0 |
12.7 |
11.9 |
|
4ATX-E24 |
E24 |
28.0 |
28.0 |
15.9 |
13.5 |
|
|
