厚膜引线网络电阻器 THICK FILM RADIAL NETWORK RESISTOR
|
特性FEATURES |
|
|
-小型、高密度组装 - Miniature, high density
assembly. |
|
|
订货方式HOW
TO ORDER |
|
A
|
09
|
472
|
J
|
||
| | | | | | | | | ||
|
电路图Circuits
|
脚数Number of pin
|
电阻值Resistance Value
|
误差Tolerance
|
||
|
A
style
|
04
|
4pin
|
100=10Ω
101=100Ω 102=1KΩ 103==10KΩ 104==100KΩ 105=1MΩ |
F
|
±1%
|
|
B
|
05
|
5pin
|
G
|
±2%
|
|
|
C
|
06
|
6pin
|
J
|
±5%
|
|
|
D
|
07
|
7pin
|
|
|
|
|
E
|
08
|
8pin
|
|
|
|
|
F
|
09
|
9pin
|
|
|
|
|
G
|
10
|
10pin
|
|
|
|
|
H
|
11
|
11pin
|
|
|
|
|
|
12
|
12pin
|
|
|
|
|
|
13
|
13pin
|
|
|
|
|
|
14
|
14pin
|
|
|
|

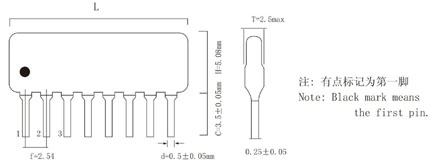

形状尺寸DIMENSIONS
单位 Unit: mm
|
脚数 No.of Pin
|
L (MAX)
|
|
|
4pin
|
10.2
|
|
|
5pin
|
12.7
|
|
|
6pin
|
15.3
|
|
|
7pin
|
17.8
|
|
|
8pin
|
20.4
|
|
|
9pin
|
22.9
|
|
|
10pin
|
25.4
|
|
|
11pin
|
28.0
|
|
|
12pin
|
30.5
|
|
|
13pin
|
33.1
|
|
|
14pin
|
35.6
|
| A | B | C | D |
 |
 |
 |
 |
| E | F | G | H |
 |
 |
 |
 |
