(Bulk pack)

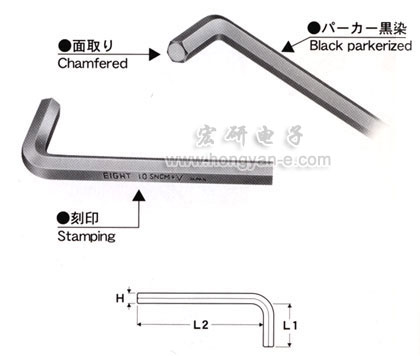

Code # Size (mm) Inner Outer
H L1 L2
No.001-0.71mm 0.71 8 34 100 4000
No.001-0.89mm 0.89 10 34 100 4000
No.001-1.27mm 1.27 14 46 100 4000
No.001-1.4mm 1.4 11 50 100 4000
No.001-1.5mm 1.5 12 52 100 4000
No.001-2mm 2 12 58 100 4000
No.001-2.5mm 2.5 15 60 100 4000
No.001-3mm 3 20 65 100 4000
No.001-3.5mm 3.5 22 68 100 3000
No.001-4mm 4 25 72 100 2000
No.001-4.5mm 4.5 27 76 100 1500
No.001-5mm 5 28 80 100 1000
No.001-5.5mm 5.5 30 85 100 1000
No.001-6mm 6 32 90 100 800
No.001-7mm 7 34 95 50 500
No.001-8mm 8 36 100 50 300
No.001-9mm 9 38 106 50 240
No.001-10mm 10 40 112 30 150
No.001-11mm 11(7/16˝) 42 118 25 120
No.001-12mm 12 45 125 20 100
No.001-13mm 13 50 132 10 100
No.001-14mm 14 55 140 10 60
No.001-15mm 15 57 150 10 60
No.001-16mm 16(5/8˝) 57 153 10 60
No.001-17mm 17 60 160 10 50
No.001-18mm 18 65 170 6 30
No.001-19mm 19(3/4˝) 70 175 6 30
No.001-20mm 20 72 185 6 30
No.001-21mm 21 75 198 6 24
No.001-22mm 22 80 200 6 24
No.001-23mm 23 85 210 - 20
No.001-24mm 24 90 225 - 20
No.001-26mm 26 95 245 - 10
No.001-27mm 27 100 250 - 10
No.001-30mm 30 120 290 - 6
No.001-32mm 32 125 315 - 6
No.001-36mm 36 130 320 - 6
No.001-41mm 41 140 390 - 4
No.001-46mm 46 155 410 - 3
No.001-50mm 50 170 430 - 2
Code # Size (mm) Inner Outer
H L1 L2
No.001-0.028˝ 0.028˝ 8 34 100 4000
No.001-0.035˝ 0.035˝ 10 34 100 4000
No.001-0.050˝ 0.050˝ 14 46 100 4000
No.001-1/16˝ 1/16˝ 13 46 100 4000
No.001-5/64˝ 5/64˝ 14 50 100 4000
No.001-3/32˝ 3/32˝ 17 56 100 4000
No.001-7/64˝ 7/64˝ 18 58 100 4000
No.001-1/8˝ 1/8˝ 20 60 100 4000
No.001-9/64˝ 9/64˝ 22 65 100 3000
No.001-5/32˝ 5/32˝ 24 68 100 2000
No.001-3/16˝ 3/16˝ 25 75 100 1000
No.001-7/32˝ 7/32˝ 27 81 100 1000
No.001-1/4˝ 1/4˝ 30 88 100 800
No.001-9/32˝ 9/32˝ 34 95 50 500
No.001-5/16˝ 5/16˝ 34 98 50 400
No.001-3/8˝ 3/8˝ 37 110 30 240
No.001-7/16˝ 7/16˝ 42 118 25 150
No.001-1/2˝ 1/2˝ 45 125 20 120
No.001-9/16˝ 9/16˝ 55 140 10 100
No.001-5/8˝ 5/8˝ 57 153 10 60
No.001-3/4˝ 3/4˝ 70 175 6 30
No.001-7/8˝ 7/8˝ 80 200 6 24
No.001-1˝ 1˝ 95 235 - 10
