MICRO CONNECTOR PLIERS PA-09
UNIVERSAL CRIMPING CONNECTOR PLIERS |
PA-09、PA-20 |
|
|
|
|
With 1

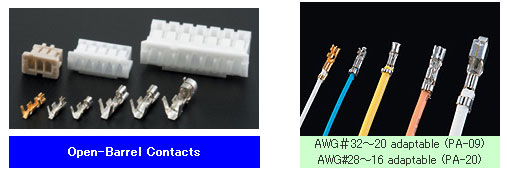

pair of PA-09, you can
crimp AWG #32 to #20
wires in micro
connectors or D-sub
connectors of different
makers !! |
|
PA-20 features
precise and universal
crimping of AWG #28 to
16 |
|
** For
example, "MOLEX", "AMP"(TYCO),
"JST", "HRS" brand
connectors, etc.
|
|
 |
|
|
|
 |
|
|
==FEATURES==
PA-09:
Capable of
crimping
1.25 to
2.5mm pitch
connector
pin
(narrow-pitch)
PA-20:
Capable of
crimping 2.5
to 5mm pitch
connector
pin
(universal
type)
●D-Sub
connector
contact can
be also
crimped.

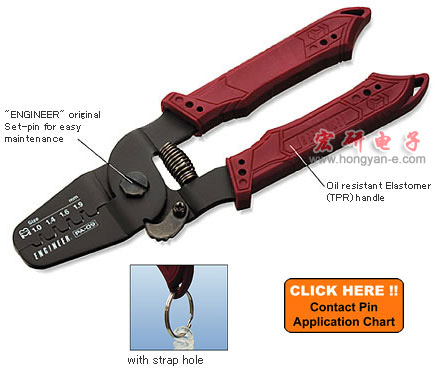

●Original
Set-pin
prevents the
joint from
being loose
and
offers you
easy
maintenance.
●With
locking
latch and
coiled
spring
●Pliers made
of S55C with
Teflon
coating
●135g
compact body
for
fatigue-free
work |
|
|
|
|
 |
|
 |
|
|
|
|
| ● *
Crimper "A"
of PA-10 is
suitable for
crimping of
open barrel
terminals
whose
conductor's
portion is
very short. |
|
|
|
|
■

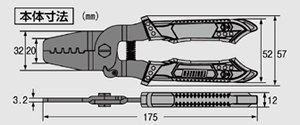

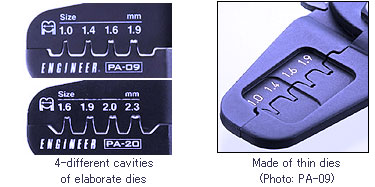

SPECIFICATIONS
|
| |
|
Model
|
Dies
W(mm) |
Dies
H(mm) |
Dies
T(mm) |
Wires
adaptable
(Ref.)
|
|
mmφ |
mm2 |
AWG
(wires)
|
|
PA-09
|
1.0
|
0.50 |
1.7
ｔhick |
0.20～0.32 |
0.032～0.08 |
#32 to
28 |
|
1.4 |
0.55 |
0.32～0.51 |
0.08～0.2 |
#28 to
24 |
|
1.6 |
0.8 |
2.0
thick |
0.51～0.64 |
0.2～0.33 |
#24 to
22 |
|
1.9 |
0.9 |
0.51～0.81 |
0.2～0.52 |
#24 to
20 |
|
PA-20 |
1.6 |
0.7 |
2.5
thick
|
0.32～0.64 |
0.08～0.33 |
#28 to
22 |
|
1.9 |
0.8 |
0.51～0.81 |
0.2～0.52 |
#24 to
20 |
|
2.0 |
0.9 |
0.64～1.02 |
0.33～0.82 |
#22 to
18 |
|
2.3 |
1.0 |
0.81～1.29 |
0.52～1.3 |
#20 to
16 |
  |
|
|
|

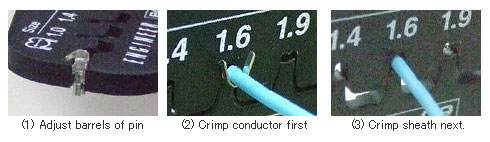

■ HOW TO
CRIMP MICRO
CONNECTOR PIN
FINELY
* Adjust both
wings of
open-barrels to
be in parallel
before crimping.
(Ref. photo 1
below)
* Make sure that
connector pin
retains straight
before insertion
into a die
cavity.
* Do not lay the
connector pin
inclined in a
die cavity to
avoid deforming
in crimping
work.
* Do not squeeze
handles so hard
while crimping
sheath portion,
which may cause
disconnection of
wires. |
|
 |
|
|
|
