DIAGONAL CUTTING NIPPERS |
NK-15・16 |
|
|
|
|
Sharp and
Durable
cutting for
precision
wiring work |
|
|
|
|
 |
|
NK-15 |
● With
opening
angle
adjuster
● With
coiled
spring
● Material:
S55C
● Hardness:
HRC 58±4 |
 |
|
|
|
|
■ NK-15 & NK-16
SPECIFICATIONS
(mm) |
|
Model
|
Nominal
Size
|
Overall
Length |
Grip
Width |
Jaw
Width |
Jaw
Thickness |
Blade
Length |
Cutting
Capacity
|
|
NK-15 |
125 |
130 |
54 |
15 |
8 |
17 |
steel wire
φ1.5mm |
|
NK-16 |
150 |
153 |
55 |
16 |
10 |
20 |
steel wire
φ1.9mm |
|
|
|
| |

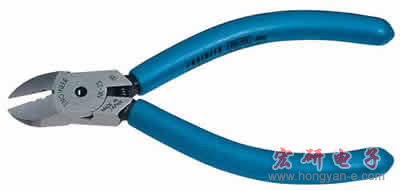

DIAGONAL NIPPERS WITH WIRE STRIPPER |
NK-25・26 |
|
|
|
|
 |
|
NK-25 |
● With
opening
angle
adjuster
● With
stripping
holes (dia.
1.2 & 1.6㎜)
● With
coiled
spring
● Material:
S55C
●Hardness:
HRC 58±4 |
 |
|
|
|
|
■ NK-25 & NK-26
SPECIFICATIONS
(mm) |
|
Model
|
Nominal
Size
|
Overall
Length |
Grip
Width |
Jaw
Width |
Jaw
Thickness |
Blade
Length
|
Cutting
Capacity
|
|
NK-25 |
125 |
130 |
54 |
15 |
8 |
17 |
steel wire
φ1.5mm |
|
NK-26 |
150 |
153 |
55 |
16 |
10 |
20 |
steel wire
φ1.9mm |
|
|
|
| |

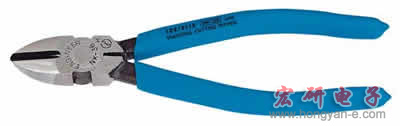

HEAVY-DUTY DIAGONAL CUTTING NIPPERS |
NK-36 |
|
|
|
|
Heavy-duty type durable
cutter |
|
 |
|
|
● Material:
S58C
● Hardness:
HRC 60±4
● Cutting
Capacity:
Steel wire
dia.2mm
|
 |
 |
|
|
|
|
■ NK-36
SPECIFICATIONS
(mm) |
Nominal
Size
|
A |
B |
C |
D |
E |
|
150 |
150 |
55 |
21 |
11 |
21 |
|
|
