日本ENGINEER工程师电子工具，工程师牌电子显微镜，放大镜【上海宏研电子021-63515828】

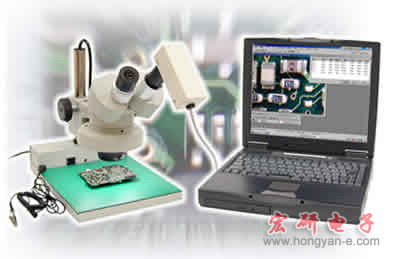

* Image captured from microscope can be displayed on PC monitor.
* Possible to create Thumbnail or to fill in a message
* Digital Scale (measurement of distance, radius, angle, perimeter, etc.)
* Image Processing (Binarization, Histogram, etc.)
* Possible to make a data report (Excel) or to create e-mail with image

USB SHOT WITH THUMBNAIL
(Software of image capture)

USB DIGITAL SCALE
(Software of image processing and scale)
● Possible to make a data report (Excel) or to create e-mail with image

● Before taking measurement, it is necessary to
set calibration with a ruler according to the magnifying
power of a stereo microscope.

The units available are pixel, mm, cm & inch.
The unit shows only by "pixel" without making
calibration setting.

Windows98ＳＥ、Ｍｅ、2000、XP対応

■SPECIFICATIONS

CAMERA	1/4" color CCD (picture elements: 310K pixels)
INTERFACE	USB Terminal
WEIGHT	Approx. 200g (including lens unit)
LENGTH OF CABLE	Approx. 1.8m long
PC ENVIRONMENT	OS : Windows98SE, WindowsME, Windows2000 (factory-installed) & WindowsXP CPU: AMD K6 or MMX Pentium 200MHz or more MEMORY: 32MB (minimum) 64MB (recommended) HDD: 2GB or more STILL CAPTURE: 640x480 (VGA) pixels
MICROSCOPE ADAPTABLE	"ENGINEER" Model SL-60 or other makes (eyepiece size must be φ23 or 30mm type)
OPTION	Cross Hairs Scale (0.01x10mm) for Calibration #SL-64

* If you are running Windows98(First Edition), fault may occur at the time of driver installation.
* Monitor and PC should be capable of the minimum resolution of 800x600 (SVGA) at 24-bit or more color depth.
