与预热台组合使用,包括BGA、CSP的SMD返修对应
|
|
|
|
|
|
|
|
|
|

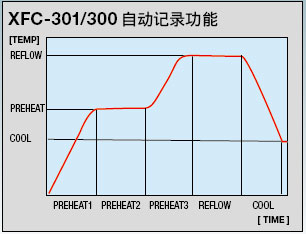

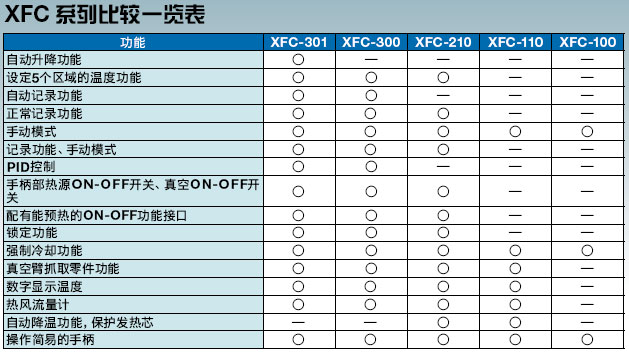

●具有自动记录功能。（PAT.P.）●能设定PREHEAT1、PREHEAT2、PREHEAT3、REFLOW、COOL DOWN 5 个区域的记录。● LIFT、PLACE 模式能寄存5 个区域，每区域19 种设定温度。手动模式能寄
存1 种设定温度。● PID 控制、实现精确温度管理。●手柄处配有热源ON-OFF 开关、操作方便。●配有能预热ON-OFF 功能接口。（ 连接控制线为选购件）●有锁定功能。●按COOL 键，对全区域冷却。
＊过程记录由5 个区域构成，能设定每个区域的温度和时间。 |
|
|
|
|
 |
|
|
|
|
|
|
型号 |
XFC-300, XFC-301（有自动升降功能）
|
|
额定电压 |
220-240V AC 50/60Hz
|
|
耗电量 |
420W
|
|
电烙铁电压 |
220V AC
|
|
温度控制范围 |
50—550°C
|
|
风量范围 |
5-25升/分
|
|
风量计 |
带风量仪表
|
|
真空吸头 |
内藏于抓取手臂前端
|
|
真空度 |
-0.03MPa (-220mmHg)
|
|
模式种类 |
3种 (Plofile-Normal, Plofile-Auto,
HAND)
|
|
温度记录( LIFT、PLACE) |
5个区域(温度和时间)
|
|
过程记录 |
( Auto, Normal )×19, HAND×1
|
|
绝缘电阻 (500V DC) |
10MΩ以上
|
|
尺寸 |
本体 |
220mm(不包括电源线)
|
| 电烙铁 |
265(L) ×200W) ×230(H)mm
|
|
重量 |
本体 |
180g(不包括电源线)
|
| 电烙铁 |
7.6kg(除电源线)
|
|
电烙铁至控制器线长 |
1m
|
|
电源线长 |
1.2m(带地线3芯插头)
|
|
插座插头 |
CG BS
|
|
| |
| 选购配件/选购配件 |
|
|
 |
XFC系列用加热芯 |
XFC-H |
|
|
加热器管护套 |
XFC-HP |
|
|
XFC-200用真空吸盘一套 |
XVCW-SET |
|
|
|
真空吸盘 |
φ6mm |
XVCW-6 |
|
φ8mm |
XVCW-8 |
|
φ10mm |
XVCW-10 |
|
| |
|
 |
| |
|

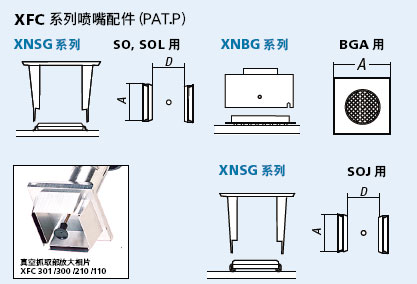

P / N
|
A
|
D
|
Applicable Package
|
|
inch
|
mm
|
inch
|
mm
|
| XNSG 4.4 ×10 |
0.394
|
10
|
0.189
|
4.8
|
SO16
|
| XNSG 5.6 ×13 |
0.591
|
15
|
0.224
|
5.7
|
SSOP8T
|
| XNSG 7.6 ×15 |
0.63
|
16
|
0.283
|
8.2
|
SOL20/26, TSOP20/24
|
| XNSG 7.6 ×18 |
0.748
|
19
|
0.283
|
8.2
|
TSOP24
|
| XNSG 7.6×12.7 |
0.742
|
12
|
0.323
|
8.2
|
SOL20, TSOP28
|
| XNSG 19 ×8 |
0.315
|
8
|
0.748
|
19
|
TSOP32
|
| XNSG 8.6 ×18 |
0.748
|
19
|
0.343
|
8.7
|
TSOP28/32
|
| XNSG 18.5 ×12 |
0.748
|
15
|
0.728
|
19.5
|
TSOP40/48
|
| XNSG 13×28 |
1.142
|
29
|
0.531
|
13.5
|
PSOP44
|
| XNSG 4.4×5 |
0.917
|
5
|
0.189
|
4.8
|
SO8
|
|
P / N
|
A
|
D
|
Applicable Package
|
|
inch
|
mm
|
inch
|
mm
|
| XNSG 15 X 8.2 |
0.591
|
15
|
0.323
|
8.2
|
SOJ20
|
|
P / N
|
A
|
Applicable Package
|
|
inch
|
mm
|
| XNBG 8 ×8 |
0.393
|
10
|
BGA16, BGA25
|
| XNBG 12 × 12 |
0.551
|
14
|
BGA49, BGA64
|
| XNBG 13 × 13 |
0.59
|
15
|
BGA49, BGA64
|
| XNBG 15×15 |
0.669
|
17
|
BGA81, BGA100
|
| XNBG 17 ×17 |
0.748
|
19
|
BGA121
|
| XNBG 19 ×19 |
0.787
|
20
|
BGA144, BGA121
|
| XNBG 23 ×23 |
0.984
|
25
|
BGA169
|
| XNBG 27 ×27 |
0.142
|
29
|
BGA324, BGA225, BGA289
|
| XNBG 35 ×35 |
1.457
|
37
|
BGA529, BGA484
|
| XNBG 38× 38 |
1.575
|
40
|
BGA576, BGA625
|
| XNBG 40× 40 |
1.654
|
42
|
BGA625, BGA676
|
|

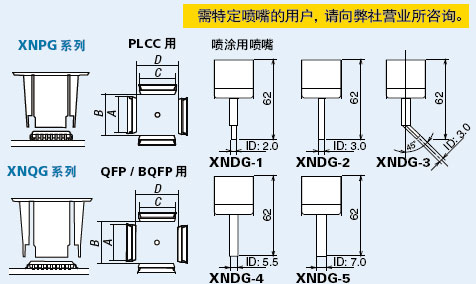

P / N
|
A
|
B
|
C
|
D
|
Applicable Package
|
|
inch
|
mm
|
inch
|
mm
|
inch
|
mm
|
inch
|
mm
|
| XNQG 12 ×12 |
0.472
|
12
|
0.551
|
14
|
0.472
|
12
|
0.551
|
14
|
QFP64,QFP48,QFP80,BQFP28
|
|
XNQG 14 ×14 |
0.591
|
15
|
0.677
|
17.2
|
0.591
|
15
|
0.677
|
17.2
|
SQFP100, TQF100
|
| XNQG 14 ×20 |
0.591
|
15
|
0.665
|
16.9
|
0.827
|
21
|
0.906
|
23
|
SQFP12, QFP80, QFP100
|
| XNQG 16 ×16 |
0.629
|
16
|
0.826
|
21
|
0.629
|
16
|
0.826
|
21
|
BQFP100T25, QFPT63
|
| XNQG 17.5×17.5 |
0.591
|
15
|
0.728
|
18.5
|
0.59
|
15
|
0.728
|
18.5
|
BQFP84
|
| XNQG 24 ×24 |
0.827
|
21
|
0.953
|
24.2
|
0.827
|
21
|
0.953
|
24.2
|
BQFP132, FQFP176
|
| XNQG 28×28 |
1.142
|
29
|
1.22
|
31
|
1.142
|
29
|
1.22
|
31
|
QFP128, SQFP208
|
| XNQG 32 ×32 |
1.22
|
31
|
1.315
|
33.4
|
1.22
|
31
|
1.315
|
33.4
|
BFP184T, FQFP408
|
| XNQG 37 ×37 |
1.22
|
31
|
1.457
|
37
|
1.22
|
31
|
1.457
|
37
|
BQFP196
|
| XNQG 40 ×40 |
1.535
|
39
|
1.654
|
42
|
1.535
|
39
|
1.654
|
42
|
BQFP244
|
|
P / N
|
A
|
B
|
C
|
D
|
Applicable Package
|
|
inch
|
mm
|
inch
|
mm
|
inch
|
mm
|
inch
|
mm
|
| XNPG 7.3×12.5 |
0.272
|
6.9
|
0.354
|
9
|
0.272
|
6.9
|
0.551
|
14
|
PLCC 7.3 X 12.5
|
| XNPG 11.5×11.5 |
0.394
|
10
|
0.512
|
13
|
0.394
|
10
|
0.512
|
13
|
PLCC 28
|
| XNPG 11.5×14 |
0.591
|
15
|
0.591
|
15
|
0.394
|
10
|
0.512
|
13
|
PLCC 11.5 X 14
|
| XNPG 17.5×17.5 |
0.591
|
15
|
0.728
|
18.5
|
0.591
|
15
|
0.728
|
18.5
|
PLCC 44
|
| XNPG 20×20 |
0.748
|
19
|
0.827
|
21
|
0.748
|
19
|
0.827
|
21
|
PLCC 52
|
| XNPG 25 ×25 |
0.945
|
24
|
1.024
|
26
|
0.945
|
24
|
1.024
|
26
|
PLCC 68
|
| XNPG 30×30 |
1.142
|
29
|
1.22
|
31
|
1.142
|
29
|
1.22
|
31
|
PLCC 84
|
|
|
| |
|
 |
| |
|
