Power Cutters: Medium General Purpose Type
(3 types)

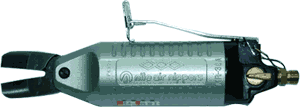

MR30A(Blades sold separately) MR20 : An easy-to-use medium-sized cutter with a wide range of usage including simple caulking and bending. MR30A : The most standard type of a power cutter that can perform cutting, crimping, bending, pressing, punching, and other jobs. MR50F : Mostly used for cutting resin. Especially effective when cutting thick materials. Model No. Overall length (mm) Weight (g) Diameter (mm) Air pressure (N) MR20 140 340 45 1372 MR30A 176 520 56 2744 MR50F 197 1170 75 4116 *Refer to the page on "Standard Blades" for the shapes of standard blades. Model No. Blade No. Material Cutting capacity (Diameter=mm) MR20 S5 Copper 2.6 S5S Copper 2.6 P6 Steel 2.0 CR6 Steel 2.0 Z6 Piano wire 1.0 MR30A S7P Copper 3.3 S7PS Copper 3.3 P8P Steel 2.8 CR8P Steel 2.8 EP10P Steel 2.8 Z8P Piano wire 1.2 Model No. Blade No. Material Cutting capacity (Diameter=mm) MR20 F5 Soft plastics Hard plastics 7.0 5.0 F5S FD5 MR30A F9P Soft plastics Hard plastics 10.0 6.0 F9PS MR50F F9P Soft plastics Hard plastics Plastics with high temperature 12.0 6.5 20.0 F9PS Model No. Blade No. Crimping capacity MR30A A8P-1.25 Non insulated connector 1.25sq A8P-2.0 Non insulated connector 2.0sq AR8P-1.25 Insulated connector 1.25sq AR8P-2.0 Insulated connector 2.0sq
