| 1.线圈数据 |
|
| 1-1.额定电压 |
12
VDC,24VDC |
| 1-2.线圈电阻 |
Refer
to table 1 |
| 1-3.动作电压 |
Refer
to table 1 |
| 1-4.释放电压 |
Refer
to table 1 |
| 1-5.额定电力消耗 |
1.5
W(12V),1.8W(24V) |
| |
|
| 2-1.触点型式 |
1Form
C,1Form A |
| 2-2.触点材料 |
Ag
Alloy |
| 2-3.额定下载 |
|
型号
|
12VDC
线圈电压
|
12VDC
coil voltage
|
| 额定(有耐力下载) |
ssNominal
ss整流
ss容量 |
N.O.:35A
14VDC
N.O.:20A 14VDC
|
N.O.:15A
28VDC
N.O.:8A 28VDC
|
| 最大.电流 |
N.O.:20A(14VDC,at
85℃185°F)
N.C.:10A(14VDC,at85¡æ185°F) |
N.O.:15A(28VDC,at
85℃185°F)
N.C.:8A(14VDC,at85¡æ185°F) |
|
| 2-4.最大转换功率 |
490W(12V
coil voltage)420W(24V coil voltage) |
| 2-5.初始接触电阻 |
¡Ü15MΩ
at 6 VDC 1A |
| 2-6.耐久性(平均寿命) |
电气寿命 |
100,000
operations at nominal load |
| 机械寿命 |
100,000
operations |
| 3-1.绝缘电阻 |
Min.20MΩ
at 500 VDC |
| 3-2.介质耐压 |
500VDC
, 1min between open contacts
500VDC , 1min between contacts and coil |
| 3-3.动作时间 |
Max.
10ms |
| 3-4.释放时间 |
Max.
10ms |
| 3-5.使用湿度范围 |
-40
to +85 ℃ |
| 3-6.抗冲击性 |
功能 |
Min.20G |
| Destructive |
Min.100G |
| 3-7.抗振性 |
功能 |
10-500Hz,Min.44.1m/s2(4.5G) |
| Destructive |
10-2,000Hz,Min.44.1m/s2(4.5G) |
| 3-8.重量 |
20gr |
 |
P:PC
BOARD TYPE
NIL:QUICK CONNECT TYPE |
CONTACT
ARRANGEMENT
A-1 FORM A C-1 FORM C |
COIL
VOLTAGE
DC12V,DC24V |
S:SEALED
TYPE
NIL:FLUX-RESISTANT TYPE |
| RELAY
SERIES |
|
|
订购代码
|
线圈电压
VDC |
线圈电阻
Ω
+/- 10% |
动作电压
VDC |
释放电压
VDC |
功耗
mW |
| CMA33-DC12V |
12 |
96 |
7 |
1.2 |
1500 |
| CMA33-DC24V |
24 |
320 |
14 |
2.4 |
1800 |

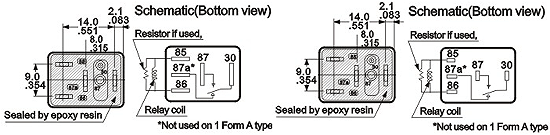

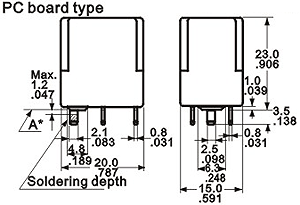

Dimensions(thickness and width) of terminal
specified in this catalog is measured before
pre-soldering.
Intervals between terminals is measured at A
surfacs level. |
|
