| 1.线圈数据 |
|
| 1-1.额定电压 |
5
to 24 VDC |
| 1-2.线圈电阻 |
Refer
to table 1 |
| 1-3.动作电压 |
Refer
to table 1 |
| 1-4.释放电压 |
Refer
to table 1 |
| 1-5.额定电力消耗 |
900
W |
| |
|
| 2-1.触点型式 |
1
Form A |
| 2-2.触点材料 |
Ag
Alloy |
| 2-3.额定下载 |
Resistive:20A
250VAC / 30VDC
Inductive:80A
Break Current:20A |
| 2-4.最大转换电压 |
250
VAC / 30 VDC |
| 2-5.最大转换电流 |
20A |
| 2-6.最大转换功率 |
5000
VA , 600W |
| 2-7.初始接触电阻 |
≤30
mΩ.at 6VDC 1A |
| 2-8.耐久性(平均寿命) |
电气寿命 |
100,000
operations at nominal load |
| 机械寿命 |
20,000,000
operations |
| 3-1.绝缘电阻 |
Min.1000MΩ
at 500 VDC |
| 3-2.介质耐压 |
1,000VAC
, 1min between open contacts
4,500VAC , 1min between contacts and coil |
| 3-3.动作时间 |
Max.
20ms |
| 3-4.释放时间 |
Max.
10ms |
| 3-5.使用湿度范围 |
-20
to +55 ℃ |
| 3-6.抗冲击性 |
耐久性 |
1,000m/s2 |
| 强度 |
100m/s2 |
| 3-7.抗振性 |
耐久性 |
10
to 55 Hz ,1.5mm Double Amplitude |
| 强度 |
10
to 55 Hz ,1.5mm Double Amplitude |
| 3-8.高温性能 |
85%RH |
| 3-9.重量 |
23gr. |
| 3-10.安全认证 |
UL
NO.E164730 |
|
TUV
NO.2133958 |
|
CCEENO.CH0067525-2001 |
 |

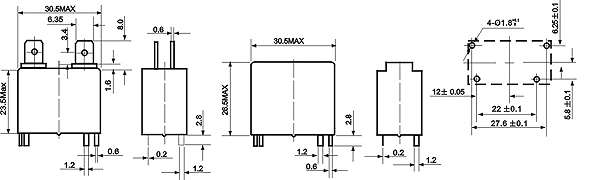

NIL-QC
TERMINAL
P-PCB TERMINAL |
COIL
VOLTAGE
DC5V, DC12V, DC24V |
ENCLOSURE
NIL-FLUX FREE
S-WASHABLE |
| RELAY
SERIES |
|
|
订购代码
|
线圈电压
VDC |
线圈电阻
Ω
+/- 10% |
动作电压
VDC |
释放电压
VDC |
功耗
mW |
| CMP6-(S)-DC5V |
5 |
27.8 |
3.50 |
0.50 |
900 |
| CMP6-(S)-DC12V |
12 |
160 |
8.40 |
1.20 |
| CMP6-(S)-DC24V |
24 |
640 |
16.80 |
2.40 |
