接插件系列>SCREW MACHINE PIN.IC SOCKET>DS1009 SERIES


DS1009 SERIES

MATERIAL   SPECIFICATION
Insulator:Thermoplastic {UL 94V-0}

Contact:Copper Alloy

Contact Plated:See ordering information


Storage Temperature:-20-70℃
Operating Temperature:0-85℃
Contact Resistance:20m Ω max.(initial)
Insulation Resistance:1,000M Ω min
Dielectric Withstanding Voltage:AC1,000V per minute

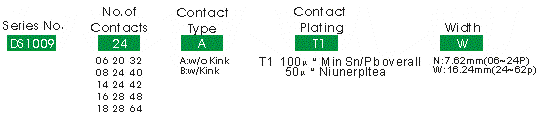

Ordering Information

型号 数量规格   单价 包装
DS1009 个/条 元/条 元/个 数量/盒
6P 80PCS 3.80 0.10 150X80PCS
8P 60PCS 3.20 0.08 150X60PCS
14P 34PCS 3.20 0.14 150X34PCS
16P 30PCS 3.20 0.16 150X30PCS
18P 26PCS 3.20 0.18 150X26PCS
20P 24PCS 3.20 0.20 150X24PCS
24P 20PCS 3.20 0.24 150X20PCS
28P 17PCS 3.20 0.28 100X17PCS
24P 20PCS 3.20 0.24 100X20PCS
28P 17PCS 3.20 0.28 100X17PCS
32P 15PCS 3.20 0.32 100X15PCS
40P 12PCS 3.20 0.40 100X12PCS
