Insulator:Thermoplastic
{UL 94V-0}

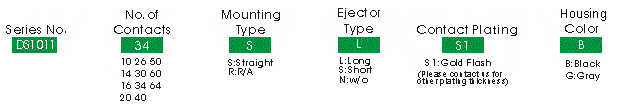

Color:See ordering Information
Contact:Copper Alloy
Contact Plated:See ordering information |
|
Storage
Temperature:-20-70℃
Operating
Temperature:0-85℃
Contact Resistance:20m Ω max.(initial)
Insulation Resistance:1,000M Ω min
Dielectric Withstanding Voltage:AC1,000V
per minute
|
