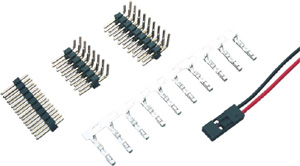

CONNECTORS>DS1071 SERIES
| DS1071
SERIES |
 |
■MAIN
SPECIFICATIONS
◆Housing:NYLON 66(UL 94V-O)
◆Applicable wires:AWG#28~#22
◆Wafer:PBT301-G20 UL94V-0
◆Applicable PC board thickness:1.6mm
◆Temperature range:-25℃~85℃
◆Voltage rating:250V.Ac/Dc
◆Current rating:2.5~1A
◆Contact resistance:≤0.02Ω
◆Insulation resistance:≥1000MΩ
◆Withstanding voltage:800V.Ac |
 |
 |
 |
 |
| Ordering
infomation |
 |
|
|
