接插件系列>CENTRONIC CONNECTOR.DVI PLUG>DS1079 SERIES


DS1079 SERIES
MATERIAL
◆Insulator:PBT+30% Glass Filber(UL94V-0)
◆Contact:Phosphor Bronze or Brass
◆Contact Plated:Cold Over Nickel
◆Shell:Steel
Zinc Plated or Tin Plated

SPECIFICATION
◆Current Rating:5AMP
◆Dielectric Strength:1000V For 1minute
◆Insulator Resistance:1000mΩ min.at DC 500V
◆Temperature:-55℃~+105℃
FEATURES
◆Low cost,high density PCB miunted connector
will mate to other ribbon type connectors
◆Selective plating(gold-palladium plated contact
and solder-plated terminal)
◆UL recognized material(94V-0)
◆One piece connector design reduce installation time
up to 2/3 for lowest installed cost benefits

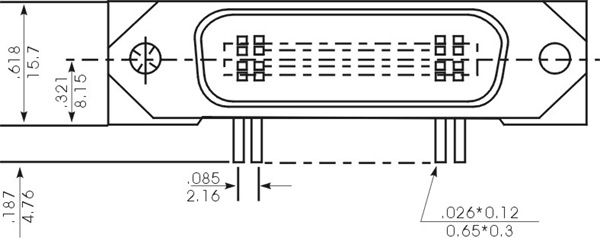

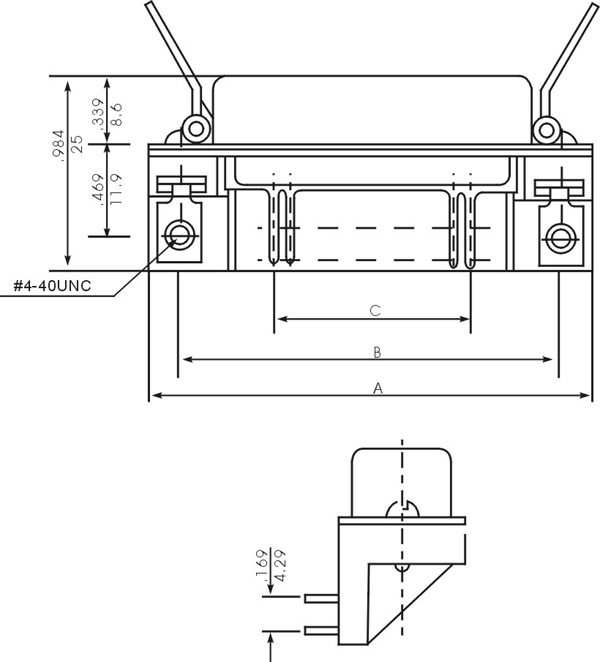

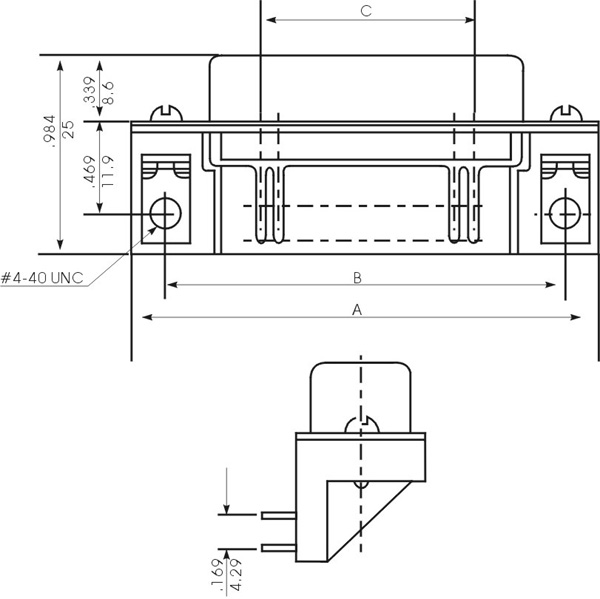

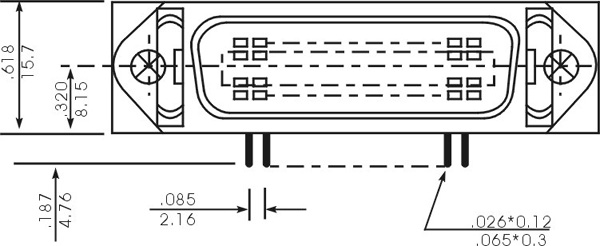

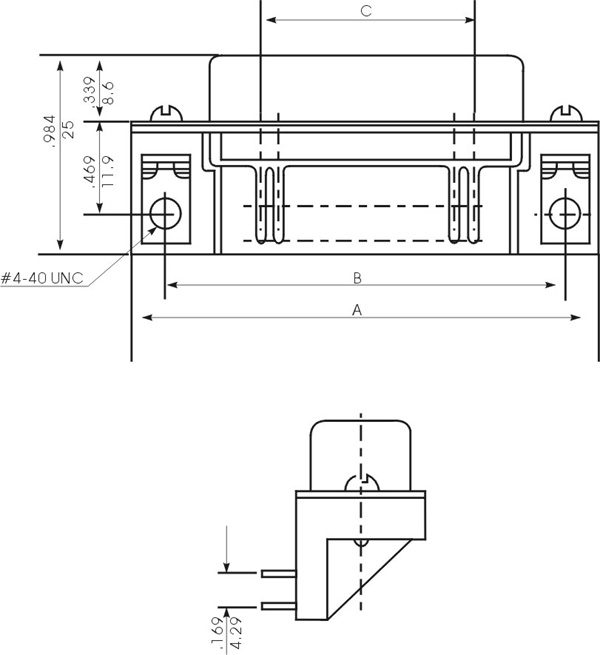

Shell Size A±0.008
   ±0.2
B±0.008
  ±0.2
C±0.004
±0.1
40360 2.665 2.350 1.446
40500 3.26
82.8
2.949
74.9
2.04
51.81

Ordering infomation
