| 1.线圈数据 |
|
| 1-1.额定电压 |
3
to 48 VDC |
| 1-2.线圈电阻 |
Refer
to table 1 |
| 1-3.动作电压 |
Refer
to table 1 |
| 1-4.释放电压 |
Refer
to table 1 |
| 1-5.额定电力消耗 |
540
mW |
| |
|
| 2-1.触点型式 |
1
Form A , 1 Form C |
| 2-2.触点材料 |
AgAlloy |
| 2-3.额定下载 |
20A
125VAC 16A 250VAC/ 30VDC,TV-5
|
| 2-4.最大转换电压 |
110
VDC / 250 VAC |
| 2-5.最大转换电流 |
20A |
| 2-6.最大转换功率 |
4000
VA , 480W |
| 2-7.最少开断电流 |
5VDC
100mA |
| 2-8.初始接触电阻 |
30mΩ.at6VDC
1A |

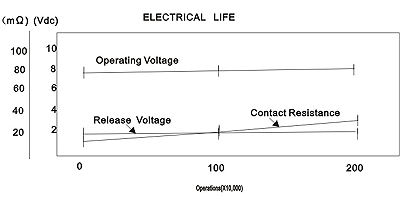

| 2-9.耐久性(平均寿命) |
电气寿命 |
25,050
operations at TV-5
100,000Ooperations at nominal load
10,000,000operations |
| 机械寿命 |
| 3-1.绝缘电阻 |
Min.1000MΩat
500 VDC |
| 3-2.介质耐压 |
1,000VAC
, 1min between open contacts
5,000VAC , 1min between contacts and coil |
| 3-3.急放电压 |
10,000VAC.(1.2/50µs)between
contacts and coil |
| 3-4.动作时间 |
Max.
20ms(including bounce) |
| 3-5.释放时间 |
Max.
10ms(including bounce) |
| 3-6.使用湿度范围 |
-30 to+85℃ |
| 3-7.抗冲击性 |
10G |
| 3-8.抗振性 |
10
to 55 Hz ,1.5mm Double Amplitude |
| 3-9.重量 |
15gr. |
| 3-10.安全认证 |
UL |
| |
TUV
No.R50013259 |
| |
VDE |
 |
NOMINAL
VOLTAGE
DC12V, DC18V,DC24V |
| RELAY
SERIES |
|
|
订购代码
|
线圈电压
VDC |
线圈电阻
Ω +/- 10% |
动作电压
VDC |
释放电压
VDC |
功率
mW |
| HRMF-DC12V |
12 |
270 |
9.0 |
0.6 |
7 |
| HRMF-DC18V |
18 |
600 |
13.5 |
0.9 |
| HRMF-DC24V |
24 |
1100 |
18.0 |
1.2 |
Note: This data is based on the max.allowable
temperature for E 型号 insulation coil(115°C) |
