| 1.线圈数据 |
|
| 1-1.额定电压 |
3
to 24 VDC |
| 1-2.线圈电阻 |
Refer
to table 1 |
| 1-3.动作电压 |
Refer
to table 1 |
| 1-4.释放电压 |
Refer
to table 1 |
| 1-5.额定电力消耗 |
200
to 450 mW |
| |
|
| 2-1.触点型式 |
1
Form C,1Form A |
| 2-2.触点材料 |
Ag
Alloy |
| 2-3.额定下载 |
10A
125VAC,5A 250VAC/30VDC |
| 2-4.最大转换电压 |
30VDC
/ 250 VAC |
| 2-5.最大转换电流 |
10A |
| 2-6.最大转换功率 |
1,250VA,150W |
| 2-7.最小电压/电流 |
5
VDC 100mA |
| 2-8.初始接触电阻 |
50mΩ.at6VDC
1A |
| 2-9.耐久性(平均寿命) |
电气寿命 |
100,000
operations at 5A/3A 250VAC |
| 机械寿命 |
10,000,000
operations |
| 3-1.绝缘电阻 |
Min.1,000MΩ
.at 500 VDC |
| 3-2.介质耐压 |
1,000VAC
for 1min between open contacts
4,000VAC for 1min between contacts and coil |

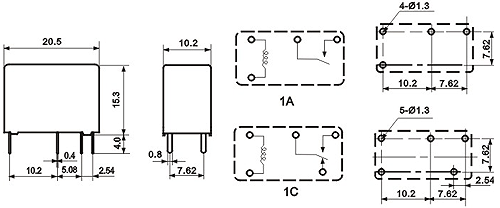

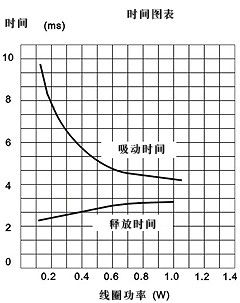

| 3-3.动作时间 |
Max.8ms |
| 3-4.释放时间 |
Max.5ms |
| 3-5.使用湿度范围 |
-40
to +70 ℃ |
| 3-6.抗冲击性 |
10G |
| 3-7.抗振性 |
10
- 55 Hz ,1.5mm Double Amplitude |
| 3-8.重量 |
7gr. |
| 3-9.安全认证 |
UL
NO.E164730 |
|
TUV
NO.2133959 |
|
CCEE
NO.CH0067529-2001 |
 |
NOMINAL
VOLTAGE :
FFFFFDC3V ,
DC5V , DC6V , DC9V , DC12V , DC18V,DC24V ,
DC48V |
ENCLOSURE
FFFFFS ----
WASHABLE |
COIL
SSNIL ----
STANDARD TYPE (450mW)
SSH -------
HIGH SENSITIVITY(200mW) |
| TYPE |
|
|
订购代码
|
线圈电压
VDC |
线圈电阻
Ω
+/- 10% |
动作电压
VDC |
释放电压
VDC |
功耗
mW |
| HRS3T-(S)-DC3V |
3 |
20 |
2.25 |
0.15 |
450 |
| HRS3T-(S)-DC5V |
5 |
55 |
3.75 |
0.25 |
| HRS3T-(S)-DC6V |
6 |
80 |
4.5 |
0.30 |
| HRS3T-(S)-DC9V |
9 |
180 |
6.75 |
0.45 |
| HRS3T-(S)-DC12V |
12 |
320 |
9.0 |
0.60 |
| HRS3T-(S)-DC18V |
18 |
720 |
13.5 |
0.90 |
|
HRS3T-(S)-DC24V
|
24
|
1280 |
18 |
1.2 |
200 |
| HRS3T-(S)-DC48V |
48 |
5120 |
36 |
2.4 |
| HRS3TH-(S)-DC3V |
3 |
45 |
2.25 |
0.15 |
| HRS3TH-(S)-DC5V |
5 |
125 |
3.75 |
0.25 |
| HRS3TH-(S)-DC6V |
6 |
180 |
4.5 |
0.30 |
| HRS3TH-(S)-DC9V |
9 |
400 |
6.75 |
0.45 |
| HRS3TH-(S)-DC12V |
12 |
720 |
9.0 |
0.60 |
| HRS3TH-(S)-DC18V |
18 |
1600 |
13.5 |
0.90 |
| HRS3TH-(S)-DC24V |
24 |
2800 |
18 |
1.2 |
