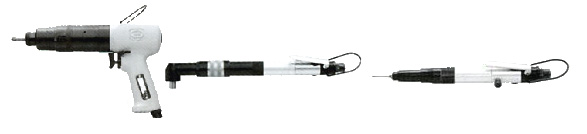

台湾快取QUICHER气动起子 |
|
|
|
气动起子：
1．锁紧扭力可调整。
2．达到设定扭力即可自动煞车。 |
|
|
|
|
|
双锤打击式气动起子 |
|
|
|
型号 |
能力
(mm) |
扭力范围
(nm) |
转速
(rpm) |
重量 |
长度 |
外径 |
入气头 |
气管 |
空气
压力 |
|
lb |
kgs |
in |
mm |
in |
mm |
|
NR-5S |
4.5 |
6.9-13 |
10000 |
1.8 |
0.8 |
8-1/8 |
207 |
1-1/8 |
40 |
PT 1/4 |
1/4 |
6kg/cm2 |
| NR-5SL |
4.5 |
6.9-13 |
10000 |
1.8 |
0.8 |
8-1/4 |
215 |
1-1/8 |
40 |
PT 1/4 |
1/4 |
6kg/cm2 |
| NR-5SA |
4.5 |
6.9-13 |
10000 |
2.4 |
1.1 |
10 |
255 |
1-1/8 |
40 |
PT 1/4 |
1/4 |
6kg/cm2 |
| NR-5SP |
4.5 |
6.9-13 |
10000 |
2.1 |
0.9 |
6-1/4 |
160 |
1-1/8 |
40 |
PT 1/4 |
1/4 |
6kg/cm2 |
| NR-6SSLD |
6 |
9.8-18 |
10000 |
2.2 |
1 |
8 |
202 |
1-7/8 |
44 |
PT 1/4 |
1/4 |
6kg/cm2 |
| NR-6SLD |
6 |
9.8-18 |
10000 |
2.4 |
1.2 |
7 |
175 |
1-7/8 |
44 |
PT 1/4 |
1/4 |
6kg/cm2 |
|
|
|
|
|
|
 |
|
|
|
滑动式离合器气动起子 |
|
|
|
型号 |
能力
(mm) |
扭力范围
(nm) |
转速
(rpm) |
重量 |
长度 |
外径 |
入气头 |
气管 |
空气
压力 |
|
lb |
kgs |
in |
mm |
in |
mm |
|
NR-3.5(A.B) |
3-4 |
1.2-2.5 |
2000 |
1.2 |
0.6 |
8 |
196 |
1-3/8 |
34 |
PT 1/4 |
1/4 |
5kg/cm2 |
| NR-4 |
4-5 |
2.3-4.4 |
1400 |
2.2 |
1 |
9-1/4 |
236 |
1-1/2 |
40 |
PT 1/4 |
1/4 |
5kg/cm2 |
| NR-5 |
5-6 |
3.4-7.8 |
1400 |
2.3 |
1.1 |
10-1/2 |
258 |
1-1/2 |
40 |
PT 1/4 |
1/4 |
5kg/cm2 |
|
|
|
|
 |
|
|
|
滑动式离合器（内强力磁铁装置）气动起子 |
|
|
|
型号 |
能力
(mm) |
扭力范围
(nm) |
转速
(rpm) |
重量 |
长度 |
外径 |
入气头 |
气管 |
空气
压力 |
|
lb |
kgs |
in |
mm |
in |
mm |
|
NR-3.5MA |
3-4 |
1.2-2.5 |
2000 |
1.2 |
0.6 |
8 |
198 |
1-3/8 |
34 |
PT 1/4 |
1/4 |
5kg/cm2 |
| NR-4MA |
4-5 |
2.3-4.4 |
1400 |
2.2 |
1 |
9-1/4 |
240 |
1-1/2 |
40 |
PT 1/4 |
1/4 |
5kg/cm2 |
| NR-5MA |
5-6 |
3.4-7.8 |
1400 |
2.4 |
1.1 |
10-1/2 |
250 |
1-1/2 |
40 |
PT 1/4 |
1/4 |
5kg/cm2 |
|
|
|
|
|
|
 |
|
|
|
自动停止式离合器气动起子 |
|
|
|
型号 |
扭力范围 |
转速
(rpm) |
重量 |
长度 |
外径 |
入气头 |
气管 |
空气
压力 |
|
nm |
km-cm |
in-lb |
lb |
kgs |
in |
mm |
in |
mm |
|
NR-ST0511 |
0.05-0.58 |
0.5-6 |
0.43-5.2 |
1100 |
0.6 |
0.3 |
8 |
203 |
7/8 |
23 |
PT 1/8 |
1/4 |
5kg/cm2 |
|
NR-ST |
0.2-0.7 |
2.5-7 |
2-6 |
1100 |
0.6 |
0.3 |
8 |
203 |
7/8 |
23 |
PT 1/8 |
1/4 |
5kg/cm2 |
|
NR-ST1015 |
0.41 |
4-10 |
3.5-8.7 |
1500 |
0.6 |
0.3 |
8 |
203 |
7/8 |
23 |
PT 1/8 |
1/4 |
5kg/cm2 |
|
NR-ST1416 |
0.7-1.3 |
7-13 |
6-11.3 |
1600 |
1.3 |
0.6 |
8-1/2 |
216 |
1-1/8 |
28.5 |
PT 1/8 |
1/4 |
5kg/cm2 |
|
NR-ST1409 |
1.1-2 |
11-20 |
9.6-17 |
900 |
1.3 |
0.6 |
8-1/2 |
216 |
1-1/8 |
28.5 |
PT 1/8 |
1/4 |
5kg/cm2 |
|
NR-ST1817 |
1-3 |
10-30 |
8.5-26 |
1700 |
1.8 |
0.8 |
9-3/8 |
238 |
1-3/8 |
34.5 |
PT 1/4 |
1/4 |
6kg/cm2 |
|
NR-ST1811 |
1.5-3.5 |
15-35 |
13-30 |
1100 |
1.8 |
0.8 |
9-3/8 |
238 |
1-3/8 |
34.5 |
PT 1/4 |
1/4 |
6kg/cm2 |
|
NR-ST1807 |
1.5-4 |
15-40 |
13-34.5 |
700 |
1.8 |
0.8 |
9-3/8 |
238 |
1-3/8 |
34.5 |
PT 1/4 |
1/4 |
6kg/cm2 |
| NR-ST2212 |
2-4.4 |
20-45 |
17-39 |
1200 |
2.5 |
1.1 |
10-1/2 |
267 |
1-1/2 |
40 |
PT 1/4 |
1/4 |
6kg/cm2 |
| NR-ST2208 |
3-6 |
30-60 |
26-52 |
800 |
2.5 |
1.1 |
10-1/2 |
267 |
1-1/2 |
40 |
PT 1/4 |
1/4 |
6kg/cm2 |
| NR-ST2205 |
3-7 |
30-70 |
26-60.8 |
500 |
2.5 |
1.1 |
10-1/2 |
267 |
1-1/2 |
40 |
PT 1/4 |
1/4 |
6kg/cm2 |
|
|
