High
efficient
Ceramic
Heater
Compact and
Light-weight
design
suitable for
accurate
soldering
work
■SK-30/31
Grip made of reinforced
glass fiber resin
SK-30

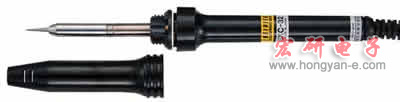

■SKC-30/31
with Heat-resistance Cap
SKC-30

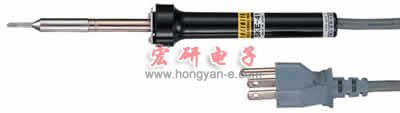

■SKE-30/31
with 3-core electric
plug to prevent electric
leakage
(Plug configuration to
be consulted for each
market)
SKE-31
3-pin plug

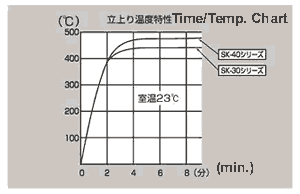

● Owing
to Ceramic
Heater,
soldering
work is
possible in
one minute
after
switch-on.
● Screw type
tip permits
easy and
quick
replacement
of tip
● Short
length from
grip to tip
for accurate
operation
SK-30 SERIES
KEY
FUNCTIONS
1
SHARP IRON TIP
(LONG LIFE AND LESS CORROSIVE)
2
SPECIAL STAINLESS STEEL INSIDE TIP
FOR PREVENTION AGAINST STICKING
AND LOOSENING OF THE TIP
3
PLUG-IN TYPE HEATER
FOR INSTANT REPLACEMENT
■ SK-30
SERIES
SPECIFICATIONS
(220-240V)
Model
Max. Tip Temp.
Wattage
Tip
Overall Length
Wght.
Rated
Voltage
Insulation
Resistance
SK-30
445℃
30W
ST-20
204㎜
128 g
220-240V
100MΩ
SKC-30
143 g
SKE-30
190 g
SK - 31
500℃
ST-21
128 g
SKC-31
143 g
SKE-31
190 g

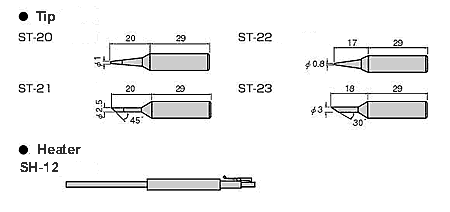

■ ST-22
Max. Tip
Temp.: 430℃ ■
ST-23
Max. Tip
Temp.: 500℃
＊ Ceramic
Heater is
not elastic
and may be
broken by
excess
shock.
Please
refrain from
beating and
wrenching.
