KOTELYZER (Cordless Soldering Iron) |
SK-70 Series |
|
|
|
|
Multi-holder
creates new
field of
cordless
soldering
iron |
|
|
|
|

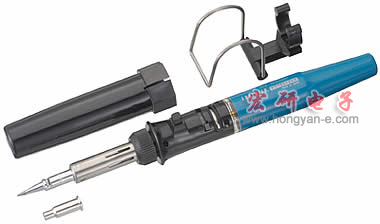

SKC-70
|
|
Two-in-one heat tool
with soldering and hot
blow functions |
SKC-70
●Body with
SK-71 tip
●Multi-holder
●SK-84 Hot
blow tip
●Protective
cap |
|
|
|
|
 |
|

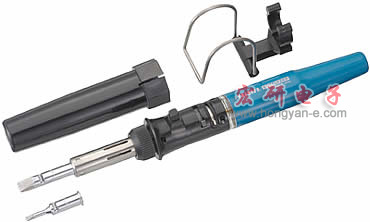

SKD-70
|
|
Designed to perform
telecommunication work |
●Body
with SK-79
tip
●Multi-holder
●SK-72
Chisel tip
●Protective
cap |
|
|
|
 |
 |
|
■ SKD-70 set comes with a high-power
tip for cable maintenance work and an accurate tip
for telephone office service |
SK-70
Comes with steel-made soldering stand box
Angle of soldering stand adjustable (3 steps)
●Body with SK-71 tip ●Cleaner sponge
●SK-84 Hot blow tip ●Soldering stand |
|
|
|
● No electricity required. Ideal for in-field
service and maintenance where instant heat is
required
● Super quick heat up with one-touch operation
● Completely cordless assures no electric leakage
and no E.M.I
● Flameless and safe heat generating system by
patented gas catalyst reaction
● Variable temperature control (equivalent to 20-80W
electric soldering iron) |
|
|
|
|
Three functions of Multi-Holder assures
safe and wide task field !! [PAT.P] |
|
|
|
 |
 |
 |
| 1. Iron Stand |
2. Magnetic attachment |
3. Hanging from cable |
|
|
|
|
|
|
|
Ceramic coating made on tip and tip housing |
|
|

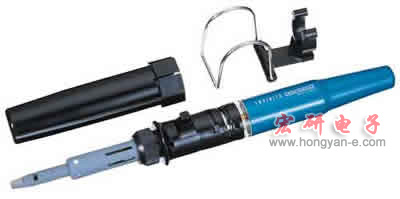

SKS-70
●Body with SK-38 ceramic tip ●Multi-holder
●Protective cap |
|
|
|
|
PAT. |
|
|
|
|
|
Maintenance of Switch-board |
Soldering on terminals |
|
|
● Safety
soldering
work to
prevent
short-circuit
caused by
mis-contact
with dense
terminals
● Ideal for
Telecommunication
field
(switch-board
maintenance
etc.) |
|
|
|
|
■SK-70 Series
Specifications |
|
System |
Gas Catalyst
Reaction System |
Thermal
Output |
Soldering Iron
|
Max. 500℃
approx. |
|
Equivalent to
20~80W electric
soldering iron |
|
Hot Blow |
Max. 650℃ |
|
Gas tank
capacity |
28cc |
Operation time
for
one fill of gas |
About 2 hours
(Lever position:
3)
About 4 hours
(Lever position:
2) |
|
Overall Length
|
265㎜ |
|
Net Weight |
110g |
|
|
■SK-70 Series
Accessories Contained |
|
Model |
Soldering Tip
|
Hot Blow Tip
SK-84 |
Protective
Cap
|
Multi-
holder
|
Steel
Case
|
|
SK-71 |
SK-72 |
SK-79 |
SK-38 |
|
SK-70 |
● |
|
|
|
● |
|
|
● |
|
SKA-70 |
● |
|
|
|
● |
● |
|
|
|
SKB-70 |
● |
|
|
|
● |
|
|
|
|
SKC-70 |
● |
|
|
|
● |
● |
● |
|
|
SKD-70 |
|
● |
● |
|
|
● |
● |
|
|
SKS-70 |
|
|
|
● |
|
● |
● |
|
|
| |

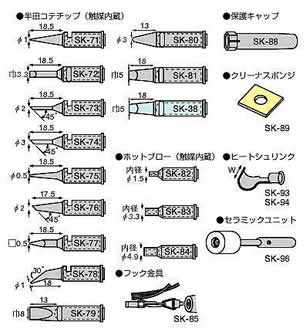

REPLACEMENT PARTS |
SK-70 Series |
|
|
|
 |
|
Model |
Description |
|
SK-38 |
5mm
Chisel
(Ceramic
Coating) |
|
SK-71 |
dia.
1mm
Tapered
needle
|
|
SK-72 |
3.3mm
Chisel |
|
SK-73 |
dia.
2mm
spade |
|
SK-74 |
dia.
3mm
spade |
|
SK-75 |
dia.
0.5mm
Tapered
needle |
|
SK-76 |
dia.
2mm
spade |
|
SK-77 |
0.5mm
Tapered
pyramid |
|
SK-78 |
dia.
1mm
Curved
tapered
needle |
|
SK-79 |
8mm
High
powered
chisel |
|
SK-80 |
3mm
High
powered
round
needle |
|
SK-81 |
5mm
High
powered
taper
chisel |
|
SK-82 |
dia.
1.5mm
Hot
blow
tip |
|
SK-83 |
dia.
3.3mm
Hot
blow
tip |
|
SK-84 |
dia.
4.9mm
Hot
blow
tip |
|
SK-85 |
Hook
fitting
|
|
SK-88 |
Protective
cap
|
|
SK-89 |
Cleaner
sponge |
|
SK-93 |
Heat
Shrink
W-22mm |
|
SK-94 |
Heat
Shrink
W-18mm |
|
SK-96 |
Ceramic
unit
|
|
|
|
|
| |
REPLACEMENT PARTS |

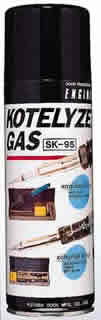

SK-90・95 |
|
|
|
|
Butane liquefied
odorless gas for
industrial use |
|
|
|
 |
 |
|
SK-90 265cc |
SK-95 480cc |
|
|
|
|
