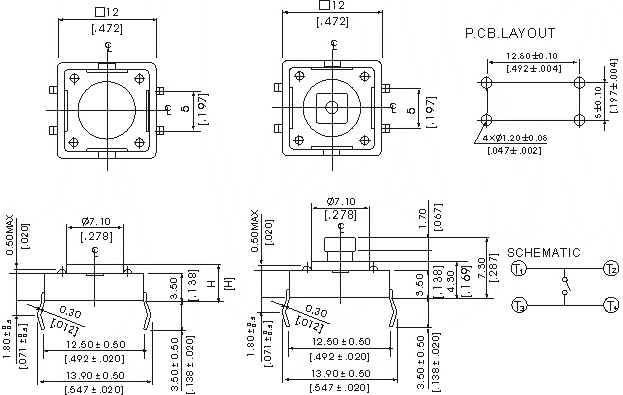

| DS1041
SERIES |
 |
| ■MATERIAL |
stop
strength:place the switch such that
verfical,astatic load of 3kgf shallbeapped
in the
direction of stem,operation for aperiod of
15 secs.
stroke:(6x6)0.25+0.2mm/-0.1mm(12x12)0.35士0.1mm
operation temperature range:-25℃to70℃
storage temperature
range:mil-std-202fmethod 201a
shock test :to mil-std-202F,method
213B,condition A.
wave soldering:recommended solder
temperature at 500℃ f(260℃)max,5
seconds,subject to pub
1.6mm thickness.
hand soldering:usea soldering iron of 30
watts,controlled at 608℃
f(320℃)approximately 2
seconds while applying solder. |
|
■SPECIFICATION
switich function:Single pole Single throw
contact rating:50mA@12vdc
insulation resistance:100m min@500vdc
contact life:100,00 cycles
operating force:see below |
|
|
 |

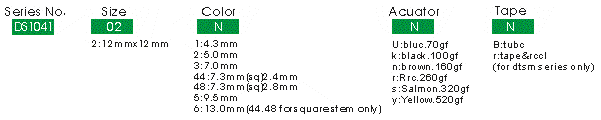

| Ordering
Information |
 |
|
