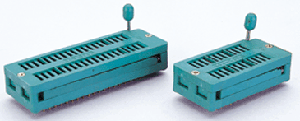

■FEATURES
Compact mechanical construction to ensurer long
term life.
Zero insertion and estraction pressure.
Standard 0.100(2.54mm)IC pitch,easy to mount in PC
board.
All plastics are UL 94V-0 grade fire retardant.
Gold plated contact to ensure low contact
resistance and long operation life.
|

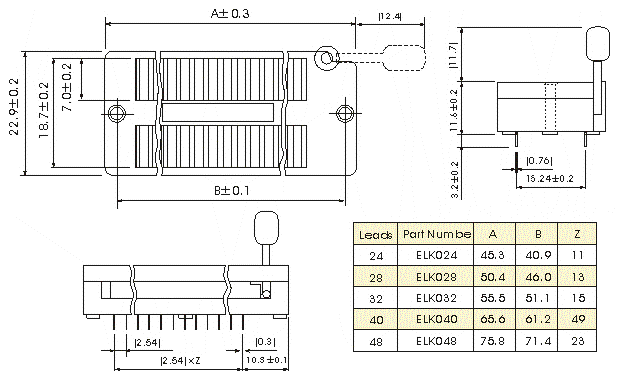

2.MECHANICAL
AND ENVERONMENTAL
Temperature Rating:
Operating:-25℃to+70℃
Storage:-40℃to+85℃
Operating Life:50,000cycles(withoutload)
25,000cycles(withload)
Humidity:95%RH,40℃for96Hrs.
Vibration:Per MIL-STD-2002F,METHOD 201A
Solderability:Affer flux230士5℃
for 5士0.5
seconds.95%coverage
Soldering Heat:260士5℃
for 5士1
Seconds |
