量产型烧录器 >> AH-100

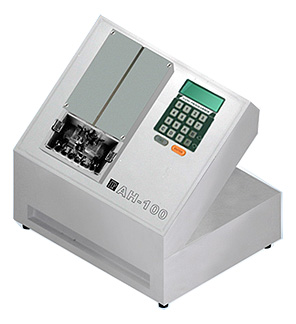

AH-100管状IC自动烧录系统
Motion
Programming organization cylinder×4
Location cylinder 1
Location cylinder 2
Location cylinder 3
Location cylinder 4

Programming
Resident Programmer SU-300
Applicable Packages DIP、SDIP、PLCC、 SOP、SSOP……etc
Input/Output 1 input tube、2 output   tube Output category OK(PASS)×1 、NG (FAIL)x1
Contact mechanism Probe with pogo pins

Productivity
SEEPROM-8K E→C→P→V  5Sec/
                 2Pcs=1440Pcs/1hr
FLASH-8BIT-1M E→C→P→V  12Sec/
                 1Pcs=216Pcs/1hr
UPH: 2000


Control
Controller     Single Chip Control
Display        20×4 LCD
Keyboard       18 keys(0,1,2,3,4,5,6,7,8,9,A,B,C,D,E,F,ESC,Enter)
Power
ACvoltage     100VAC~240VAC/
                   50~60Hz
PowerConsumption                 200W(MAX)

Air
Air pressure    5 bar(0.5Mpa)
Air consumption    7.4 Lt/min
Hose input aperture  6.0 mm diameter
