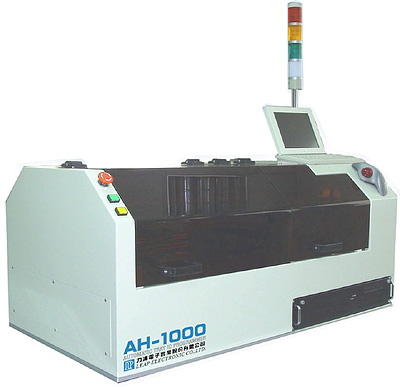

Transmission
Motor X axis: 2
phases step motor
Y axis: 5 phases
step motor
Z axis: 5 phases
step motor
Transmission Belt drive RSR
series
rolling track
Resolution 0.05mm/Pulse
(mm/pulse)
Maximum length X axis: 900mm
Y axis: 420mm
Z axis: 38mm
IC picking method Air sucking
Programming
Programmer
SU-1000
Socket 4 units, 4 slots/unit,
16
slots totally
Supporting Package:
TSOP, VSOP, BGA, PLCC, TQFP…
Intake / Outlet mode Tray to
Tray:
【1 in 2 out (Intake / OK / NG),3
trays】
Supporting Tray JDEC Tray
Production
Production 1200 UPH/ONE ARM
2000 UPH/TWO ARMS
Cycle 20 sec
Controlling
Controller IPC
Display 8.4 inch touch panel
OS Windows 2000
Operation Interface
General:Function Bottom,8.4 inch
touch panel Maintain:
Keyboard, Mouse
Power
AC / DC power 110V / 60Hz
Power consumption 10A
Air compressor
Air pressure source
requirement 0.4 Mpa ~ 0.5 Mpa
Avg. air consumption 50 L/min
Air intake hole ψ 8mm swift
connector
Air pressure pipe ψ 4mm PU
pipe
Appearance
Dimension (W)1200 mm(D)580
mm(H)460 mm
Weight 100Kg
Others
Option accessories Precissor
Adaptors.
TSOP. BGA. uBGA.VFBGA.
QFP.TQFP.......... |
