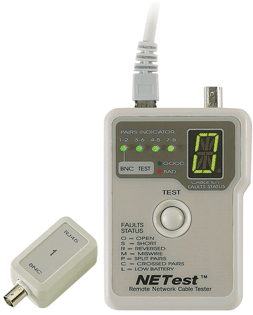

NETest Remote Network Cable Tester



The NETest/font> network cable tester is a simple but comprehensive cable tester that will diagnose wiring faults for 10BASE2 (Coax), 10BASE-T, and 100BASE-Tx, TIA-586A, TIA-568B & Token Ring cables. It will not only identify wiring faults such as open wires, shorts, reversed pairs, crossed pairs, split pairs and miswiring, but also will identify up to 4 different cables from the tested end. With a push of a button, the NETest will automatically scan all wires and pairs to determine any existent faults. A large alphanumeric LED displays the fault code; while a series of smaller LEDs indicate which pair the fault is existent on. For testing of installed cables, 4 remote terminators are provided.  The terminators are also used to identify which cable is being tested. The NETest makes cable testing for multiple LAN interfaces virtually effortless.

Features:

  • High speed testing and detailed fault identification of UTP/STP and Coaxial cables

  • Verifies adherence to 10BASE-2, 10BASE-T, 100BASE-T, TIA-568A, TIA-568B and Token Ring wiring standards

  • Identifies shorted wires, open wires, crossed pairs, reversed pairs, split pairs and miswiring

  • Split pair detection:
      -
    Min. 1.2m (about 4 Feet)
      -
    Max. 150m (about 492 Feet)

  • Identifies up to 4 different cables with provided remote identifiers (256450)

  • Large alphanumeric LED clearly displays fault status.

  • Includes carrying pouch with belt loop

256451

256451R

Fault Code

Split pairs Open pairs Short pairs Crossed pairs Reversed pairs Miswire Low Power


Order Information



256450

NETest ?/font> with remote unit #1,2,3,4

256451

NETest ?/font> with remote unit #1

256451R

Only Remote unit #2,3,4
