The LANtest Pro is a small hand-held tester that enables the user to quickly read the status of Ethernet twisted pair cables.  It tests for faults such as open circuits, shorts, crossed pairs, reversed pairs and split pairs in seconds. The Tone generator function can send a signal through your installed cables and the probe can then trace the cable to locate the fault.

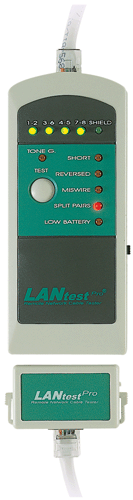

The LANtest Pro includes one master unit and one remote unit easily operated by one person testing patch cords or installed cables. The small remote unit is designed to slip into the master unit to prevent loss or damage.

• Tests for wiring faults of open, short, reversed, crossed and split pairs

• Split pair fault detection at a minimum 40cm cable length

• Verification of shield integrity

• Specially designed remote unit that enables one person to test installed cables

• Easy to read fault display and high speed testing

• Debug mode for detailed fault identification results

• Auto sleep mode and power off switch to decrease power consumption

• Low battery indicator

• Tone Generator Features (single tone or multi-tone signal)

Specifications:

• Connectors

  • LANtest Pro Main Unit - RJ45 jack

  • Remote Unit - RJ45 jack

• Pairs tested

  • 1/2, 3/6, 4/5, 7/8 and shield

• LED Display

  • Horizontal:

    5 Green LEDs for pairs and shield display

    (1-2, 3-6, 4-5, 7-8 and SHIELD)

  • Vertical:

    6 Red LEDs for fault display

    (Tone Generator, Open, Short, Reversed, Crossed, Split Pairs And Low Battery)

• Cables test length limit

  • Minimum: 0.4m

  • Maximum: Over 200m

• Power

  • One 6V alkaline DC battery included. (Duracell PX28A or equivalent).

  • Remote identifier - no battery required

• Dimensions:

  • 125 x 52 x 30mm (L x W x H)

  • 4.92 x 2.05 x 1.18 inches.

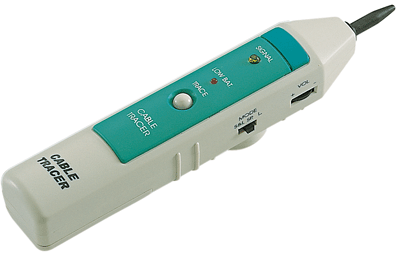

Probe Features:

• Special inductive plastic tip, which prevents accidental shorts (possible with copper-tip tracers) when using near high voltage devices

• Traces and identifies wires or cable in a bundle or group without damaging cable insulation

• Adjustable volume level for various work environments

• Both amplifier and LED for loud or dark work environments

• Can work with any existing tone generator in the market

• Power switch to prevent battery drain
