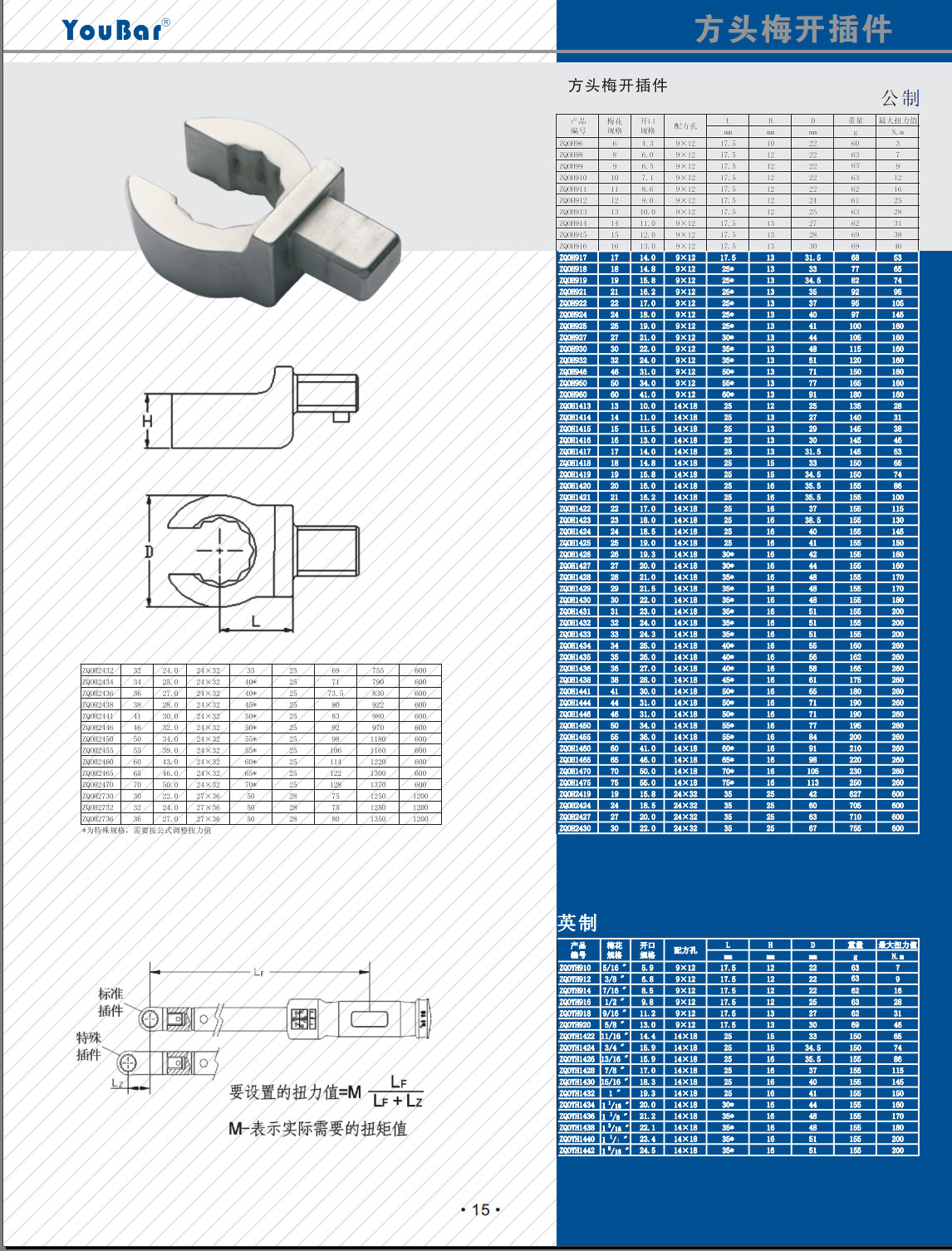

方头梅开插件 |
|
|
|
|
 |
手册资料 |
|
|
|
|
公制 |
|
产品编号 |
梅花规格 |
开口规格 |
配方孔 |
L |
H |
D |
重量 |
最大扭力值 |
|
mm |
mm |
mm |
g |
N.m |
|
ZQOH96 |
6 |
4.3 |
9×12 |
17.5 |
10 |
22 |
60 |
3 |
|
ZQOH98 |
8 |
6.0 |
9×12 |
17.5 |
12 |
22 |
63 |
7 |
|
ZQOH99 |
9 |
6.5 |
9×12 |
17.5 |
12 |
22 |
63 |
9 |
|
ZQOH910 |
10 |
7.1 |
9×12 |
17.5 |
12 |
22 |
63 |
12 |
|
ZQOH911 |
11 |
8.6 |
9×12 |
17.5 |
12 |
22 |
62 |
16 |
|
ZQOH912 |
12 |
9.0 |
9×12 |
17.5 |
12 |
24 |
61 |
25 |
|
ZQOH913 |
13 |
10.0 |
9×12 |
17.5 |
12 |
25 |
63 |
28 |
|
ZQOH914 |
14 |
11.0 |
9×12 |
17.5 |
13 |
27 |
62 |
31 |
|
ZQOH915 |
15 |
12.0 |
9×12 |
17.5 |
13 |
28 |
69 |
38 |
|
ZQOH916 |
16 |
13.0 |
9×12 |
17.5 |
13 |
30 |
69 |
46 |
|
ZQOH917 |
17 |
14.0 |
9×12 |
17.5 |
13 |
31.5 |
68 |
53 |
|
ZQOH918 |
18 |
14.8 |
9×12 |
25* |
13 |
33 |
77 |
65 |
|
ZQOH919 |
19 |
15.8 |
9×12 |
25* |
13 |
34.5 |
82 |
74 |
|
ZQOH921 |
21 |
16.2 |
9×12 |
25* |
13 |
35 |
92 |
95 |
|
ZQOH922 |
22 |
17.0 |
9×12 |
25* |
13 |
37 |
95 |
105 |
|
ZQOH924 |
24 |
18.0 |
9×12 |
25* |
13 |
40 |
97 |
145 |
|
ZQOH925 |
25 |
19.0 |
9×12 |
25* |
13 |
41 |
100 |
160 |
|
ZQOH927 |
27 |
21.0 |
9×12 |
30* |
13 |
44 |
105 |
160 |
|
ZQOH930 |
30 |
22.0 |
9×12 |
35* |
13 |
48 |
115 |
160 |
|
ZQOH932 |
32 |
24.0 |
9×12 |
35* |
13 |
51 |
120 |
160 |
|
ZQOH946 |
46 |
31.0 |
9×12 |
50* |
13 |
71 |
150 |
160 |
|
ZQOH950 |
50 |
34.0 |
9×12 |
55* |
13 |
77 |
165 |
160 |
|
ZQOH960 |
60 |
41.0 |
9×12 |
60* |
13 |
91 |
180 |
160 |
|
ZQOH1413 |
13 |
10.0 |
14×18 |
25 |
12 |
25 |
135 |
28 |
|
ZQOH1414 |
14 |
11.0 |
14×18 |
25 |
13 |
27 |
140 |
31 |
|
ZQOH1415 |
15 |
11.5 |
14×18 |
25 |
13 |
29 |
145 |
38 |
|
ZQOH1416 |
16 |
13.0 |
14×18 |
25 |
13 |
30 |
145 |
46 |
|
ZQOH1417 |
17 |
14.0 |
14×18 |
25 |
13 |
31.5 |
145 |
53 |
|
ZQOH1418 |
18 |
14.8 |
14×18 |
25 |
15 |
33 |
150 |
65 |
|
ZQOH1419 |
19 |
15.8 |
14×18 |
25 |
15 |
34.5 |
150 |
74 |
|
ZQOH1420 |
20 |
16.0 |
14×18 |
25 |
16 |
35.5 |
155 |
86 |
|
ZQOH1421 |
21 |
16.2 |
14×18 |
25 |
16 |
35.5 |
155 |
100 |
|
ZQOH1422 |
22 |
17.0 |
14×18 |
25 |
16 |
37 |
155 |
115 |
|
ZQOH1423 |
23 |
18.0 |
14×18 |
25 |
16 |
38.5 |
155 |
130 |
|
ZQOH1424 |
24 |
18.5 |
14×18 |
25 |
16 |
40 |
155 |
145 |
|
ZQOH1425 |
25 |
19.0 |
14×18 |
25 |
16 |
41 |
155 |
150 |
|
ZQOH1426 |
26 |
19.3 |
14×18 |
30* |
16 |
42 |
155 |
160 |
|
ZQOH1427 |
27 |
20.0 |
14×18 |
30* |
16 |
44 |
155 |
160 |
|
ZQOH1428 |
28 |
21.0 |
14×18 |
35* |
16 |
48 |
155 |
170 |
|
ZQOH1429 |
29 |
21.5 |
14×18 |
35* |
16 |
48 |
155 |
170 |
|
ZQOH1430 |
30 |
22.0 |
14×18 |
35* |
16 |
48 |
155 |
180 |
|
ZQOH1431 |
31 |
23.0 |
14×18 |
35* |
16 |
51 |
155 |
200 |
|
ZQOH1432 |
32 |
24.0 |
14×18 |
35* |
16 |
51 |
155 |
200 |
|
ZQOH1433 |
33 |
24.3 |
14×18 |
35* |
16 |
51 |
155 |
200 |
|
ZQOH1434 |
34 |
25.0 |
14×18 |
40* |
16 |
55 |
160 |
260 |
|
ZQOH1435 |
35 |
26.0 |
14×18 |
40* |
16 |
56 |
162 |
260 |
|
ZQOH1436 |
36 |
27.0 |
14×18 |
40* |
16 |
58 |
165 |
260 |
|
ZQOH1438 |
38 |
28.0 |
14×18 |
45* |
16 |
61 |
175 |
260 |
|
ZQOH1441 |
41 |
30.0 |
14×18 |
50* |
16 |
65 |
180 |
260 |
|
ZQOH1444 |
44 |
31.0 |
14×18 |
50* |
16 |
71 |
190 |
260 |
|
ZQOH1446 |
46 |
31.0 |
14×18 |
50* |
16 |
71 |
190 |
260 |
|
ZQOH1450 |
50 |
34.0 |
14×18 |
55* |
16 |
77 |
195 |
260 |
|
ZQOH1455 |
55 |
36.0 |
14×18 |
55* |
16 |
84 |
200 |
260 |
|
ZQOH1460 |
60 |
41.0 |
14×18 |
60* |
16 |
91 |
210 |
260 |
|
ZQOH1465 |
65 |
46.0 |
14×18 |
65* |
16 |
98 |
220 |
260 |
|
ZQOH1470 |
70 |
50.0 |
14×18 |
70* |
16 |
105 |
230 |
260 |
|
ZQOH1475 |
75 |
55.0 |
14×18 |
75* |
16 |
113 |
250 |
260 |
|
ZQOH2419 |
19 |
15.8 |
24×32 |
35 |
25 |
42 |
627 |
600 |
|
ZQOH2424 |
24 |
18.5 |
24×32 |
35 |
25 |
60 |
705 |
600 |
|
ZQOH2427 |
27 |
20.0 |
24×32 |
35 |
25 |
63 |
710 |
600 |
|
ZQOH2430 |
30 |
22.0 |
24×32 |
35 |
25 |
67 |
755 |
600 |
|
ZQOH2432 |
32 |
24.0 |
24×32 |
35 |
25 |
69 |
755 |
600 |
|
ZQOH2434 |
34 |
25.0 |
24×32 |
40* |
25 |
71 |
790 |
600 |
|
ZQOH2436 |
36 |
27.0 |
24×32 |
40* |
25 |
73.5 |
830 |
600 |
|
ZQOH2438 |
38 |
28.0 |
24×32 |
45* |
25 |
80 |
922 |
600 |
|
ZQOH2441 |
41 |
30.0 |
24×32 |
50* |
25 |
83 |
980 |
600 |
|
ZQOH2446 |
46 |
32.0 |
24×32 |
50* |
25 |
92 |
970 |
600 |
|
ZQOH2450 |
50 |
34.0 |
24×32 |
55* |
25 |
98 |
1180 |
600 |
|
ZQOH2455 |
55 |
39.0 |
24×32 |
55* |
25 |
106 |
1160 |
600 |
|
ZQOH2460 |
60 |
43.0 |
24×32 |
60* |
25 |
114 |
1220 |
600 |
|
ZQOH2465 |
65 |
46.0 |
24×32 |
65* |
25 |
122 |
1300 |
600 |
|
ZQOH2470 |
70 |
50.0 |
24×32 |
70* |
25 |
128 |
1370 |
600 |
|
ZQOH2730 |
30 |
22.0 |
27×36 |
50 |
28 |
75 |
1250 |
1200 |
|
ZQOH2732 |
32 |
24.0 |
27×36 |
50 |
28 |
75 |
1250 |
1200 |
|
ZQOH2736 |
36 |
27.0 |
27×36 |
50 |
28 |
80 |
1350 |
1200 |
|
|
*为特殊规格，需要按公式调整扭力值 |
|
英制 |
|
产品编号 |
梅花规格 |
开口规格 |
配方孔 |
L |
H |
D |
重量 |
最大扭力值 |
|
mm |
mm |
mm |
g |
N.m |
|
ZQOYH910 |
5/16
" |
5.9 |
9×12 |
17.5 |
12 |
22 |
63 |
7 |
|
ZQOYH912 |
3/8
" |
6.8 |
9×12 |
17.5 |
12 |
22 |
63 |
9 |
|
ZQOYH914 |
7/16
" |
8.5 |
9×12 |
17.5 |
12 |
22 |
62 |
16 |
|
ZQOYH916 |
1/2
" |
9.8 |
9×12 |
17.5 |
12 |
25 |
63 |
28 |
|
ZQOYH918 |
9/16
" |
11.2 |
9×12 |
17.5 |
13 |
27 |
62 |
31 |
|
ZQOYH920 |
5/8
" |
13.0 |
9×12 |
17.5 |
13 |
30 |
69 |
46 |
|
ZQOYH1422 |
11/16
" |
14.4 |
14×18 |
25 |
15 |
33 |
150 |
65 |
|
ZQOYH1424 |
3/4
" |
15.9 |
14×18 |
25 |
15 |
34.5 |
150 |
74 |
|
ZQOYH1426 |
13/16
" |
15.9 |
14×18 |
25 |
16 |
35.5 |
155 |
86 |
|
ZQOYH1428 |
7/8
" |
17.0 |
14×18 |
25 |
16 |
37 |
155 |
115 |
|
ZQOYH1430 |
15/16
" |
18.3 |
14×18 |
25 |
16 |
40 |
155 |
145 |
|
ZQOYH1432 |
1 " |
19.3 |
14×18 |
25 |
16 |
41 |
155 |
150 |
|
ZQOYH1434 |
1
1/16
" |
20.0 |
14×18 |
30* |
16 |
44 |
155 |
160 |
|
ZQOYH1436 |
1
1/8
" |
21.2 |
14×18 |
35* |
16 |
48 |
155 |
170 |
|
ZQOYH1438 |
1
3/16
" |
22.1 |
14×18 |
35* |
16 |
48 |
155 |
180 |
|
ZQOYH1440 |
1
1/4
" |
23.4 |
14×18 |
35* |
16 |
51 |
155 |
200 |
|
ZQOYH1442 |
1
5/16
" |
24.5 |
14×18 |
35* |
16 |
51 |
155 |
200 |
|
|
*为特殊规格，需要按公式调整扭力值 |
|
|
