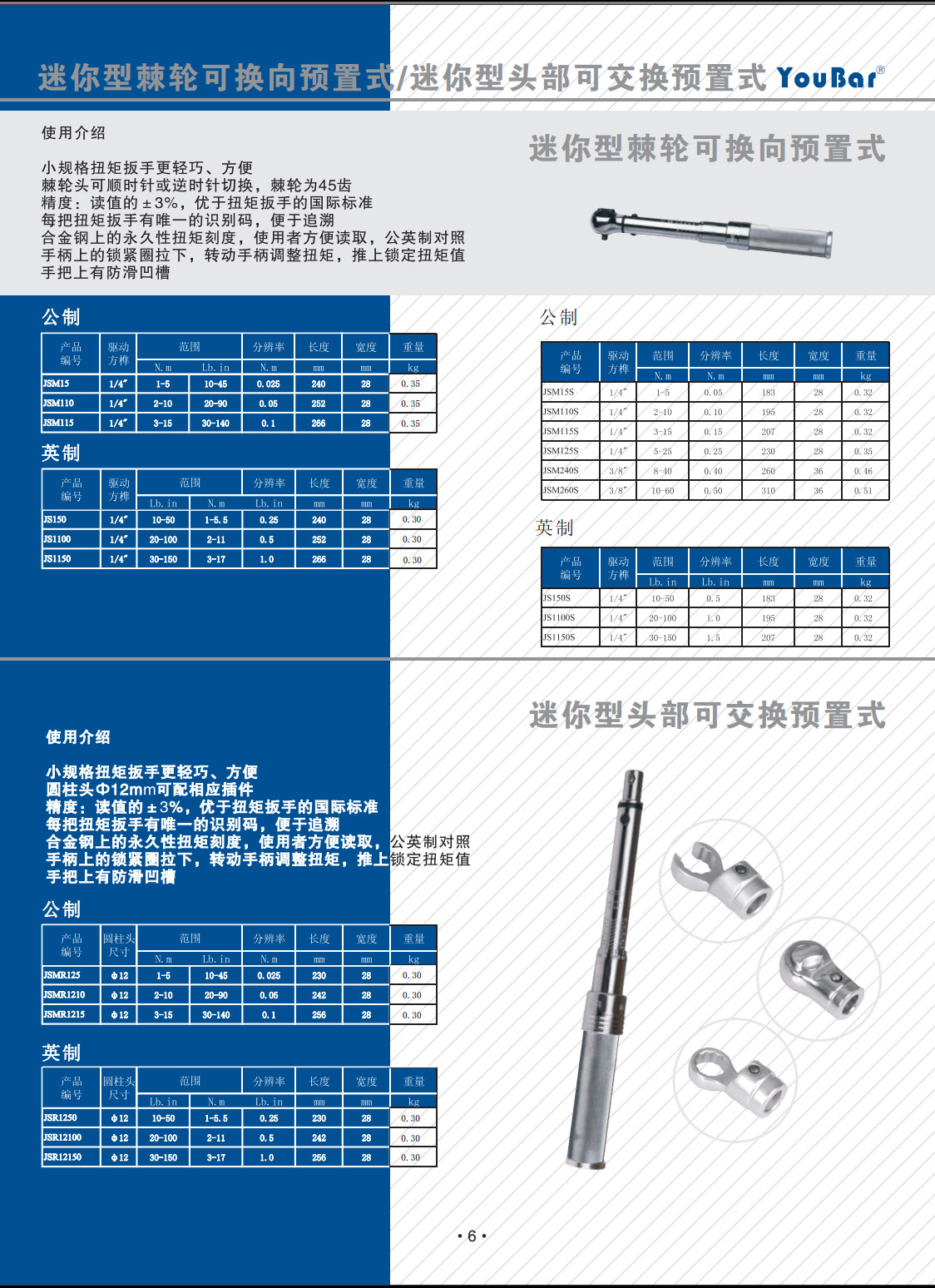

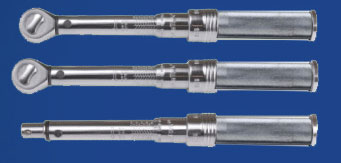

迷你型棘轮可换向预置式/迷你型头部可交换预置式扭力扳手 |
|
|
|
|
 |
手册资料 |
|
|
|
|
使用介绍
小规格扭矩扳手更轻巧方便
棘轮头可顺时针逆时针切换，棘轮为45齿
圆柱头Φ12mm 可配相应插件
精度:读值的±3%优于扭矩扳手的国际标准
每把扭矩扳手有唯一的识别码便于追溯
合金钢上的永久性扭矩刻度，使用者方便读取，公英制对照
手柄尾端有锁紧装置，拉下调整扭矩，推上锁定扭矩值
手把上有防滑凹槽 |
|
产品编号 |
方头或扳手头尺寸 |
范围
|
长度 |
头部宽度 |
重量 |
|
JS1100 |
1/4" |
2-11Nm |
20-100Lb.in |
252mm |
28mm |
0.35kg |
|
JS1100S |
1/4" |
|
20-100Lb.ft |
195mm |
28mm |
0.32kg |
|
JS1150 |
1/4" |
3-17Nm |
30-150Lb.in |
266mm |
28mm |
0.35kg |
|
JS1150S |
1/4" |
|
30-150Lb.ft |
207mm |
28mm |
0.32kg |
|
JS150 |
1/4" |
1-5.5Nm |
10-50Lb.in |
240mm |
28mm |
0.35kg |
|
JS150S |
1/4" |
|
10-50Lb.ft |
183mm |
28mm |
0.32kg |
|
JSM110 |
1/4" |
20-90Lb.in |
2-10Nm |
252mm |
28mm |
0.35kg |
|
JSM110S |
1/4" |
20-90Lb.in |
2-10N.m |
195mm |
28mm |
0.32kg |
|
JSM115 |
1/4" |
30-140Lb.in |
3-15Nm |
266mm |
28mm |
0.35kg |
|
JSM115S |
1/4" |
30-100Lb.in |
3-15N.m |
207mm |
28mm |
0.32kg |
|
JSM125S |
1/4" |
|
5-25N.m |
230mm |
28mm |
0.35kg |
|
JSM15 |
1/4" |
10-45Lb.in |
1-5Nm |
240mm |
28mm |
0.35kg |
|
JSM15S |
1/4" |
10-45Lb.in |
1-5N.m |
183mm |
28mm |
0.32kg |
|
JSM240S |
3/8" |
|
8-40N.m |
260mm |
36mm |
0.46kg |
|
JSM260S |
3/8" |
|
10-60N.m |
310mm |
36mm |
0.51kg |
|
JSMR1210 |
Φ12 |
20-90Lb.in |
2-10Nm |
242mm |
28mm |
0.30kg |
|
JSMR1215 |
Φ12 |
30-140Lb.in |
3-15Nm |
256mm |
28mm |
0.30kg |
|
JSMR125 |
Φ12 |
10-45Lb.in |
1-5Nm |
230mm |
28mm |
0.30kg |
|
JSR12100 |
Φ12 |
2-11Nm |
20-100Lb.in |
242mm |
28mm |
0.30kg |
|
JSR12150 |
Φ12 |
3-17Nm |
30-150Lb.in |
256mm |
28mm |
0.30kg |
|
JSR1250 |
Φ12 |
1-5.5Nm |
10-50Lb.in |
230mm |
28mm |
0.30kg |
|
|
|
|
|
|
|
